JUICE / NECTAR RECONSTITUTION LINES (026pro)
Price (excl GST): POA
Motor: 3ph
Condition: New
Location: Italy
A large part of processed fruits is transformed into concentrate. This automatically brings with it the necessity of machinery to reconstitute the concentrate or puree into the final juice or nectar. This manufacturer offers complete reconstitution lines for many types of products with very economic solutions according to the required capacity.

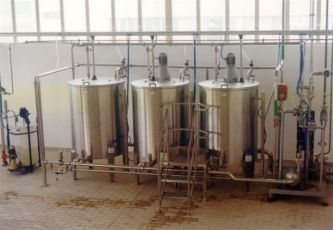

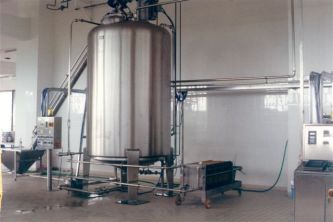

On offer are DOSING AND MIXING LINES The heart of the constitution line is the proper mixing of the required ingredients in our BERMATIC which contains tank/s on loading cells or scale to prepare fruit juices, nectars, drinks or syrups when it is necessary to proportion and mix liquid and solid components.
Four main components characterise the mixing process:
1) DRUM EMPTYING PUMP - unit used for a fast emptying of drums containing juice concentrate, puree, etc.
2) HOT WATER PREPARATION GROUP.
3) DOSING GROUP for adding citric acid, ascorbic acid, etc.
4) SUGAR FEEDING GROUP, suitable to convey sugar or other solid foods for feeding the dosing groups BERMATIC or syrup preparation tanks. Complete with sugar deposit hopper and solid transport screw conveyor.

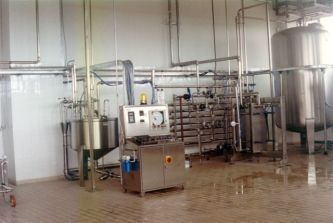

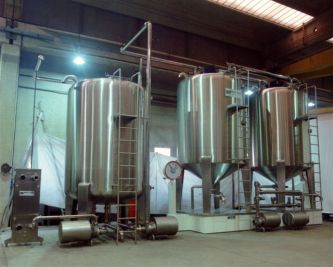

SYRUP PREPARATION LINE where in the case of nectar production, ie the combination of fruit puree and syrup, we can provide the complete syrup preparation line. The smaller the required capacity gets though, the less important a separate syrup line becomes. In order to strongly reduce the investment, we can offer solutions for integrating the syrup preparation into the actual mixing process.

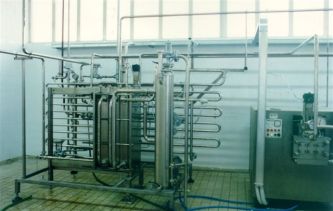

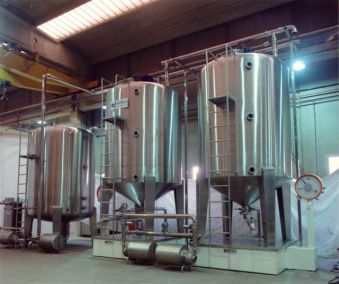

PASTEURISATION where the ready prepared syrup passes through the plate pasteurisation process is kept in a storage tank and then transported to the dosing and mixing line in the required quantity.

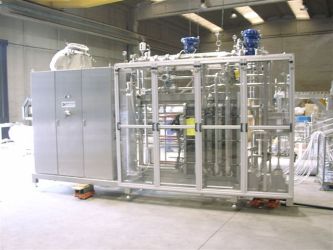

JUICE TREATMENT LINE including DEAERATION where in order to increase the products shelf life, we strongly recommend the integration of a deaerator. Upon request the unit can easily be supplied with aroma recovery.
HOMOGENISERS for homogenisation of the product can also be supplied.

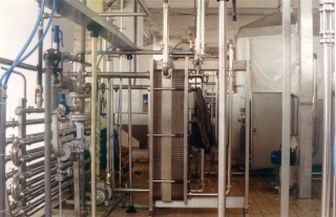

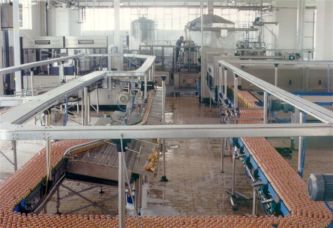

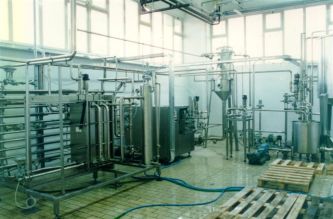

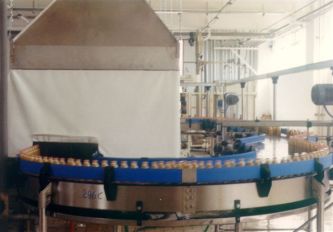

FINAL THERMAL TREATMENT via a pasteuriser (THERMOFLASH) or sterilizer (STERILFLASH) machines with pressed plates for the treatment of juices, nectars and fruit cremogenates to be hot filled into glass bottles or gable top cartons, etc or sterilised for filling into aseptic cartons. In cooperation with reliable partners filling lines for various containers can be supplied for turn key plants.
