2000 LITRE SCRAPE SURFACE JACKETED PANS (085jasw)

ENQUIRE NOW SIMILAR ITEMS

Price (excl GST): POA

Make: Iopak

Model No: 316 2000CRM

Length: 1750

Width: 1750

Height: 2670

Motor: 3ph, 3.0 / 1.1kW, 29 / 49rpm

Condition: New

Location: Australia

Type: steam/water

Material: stainless

Volume: 2000 litres

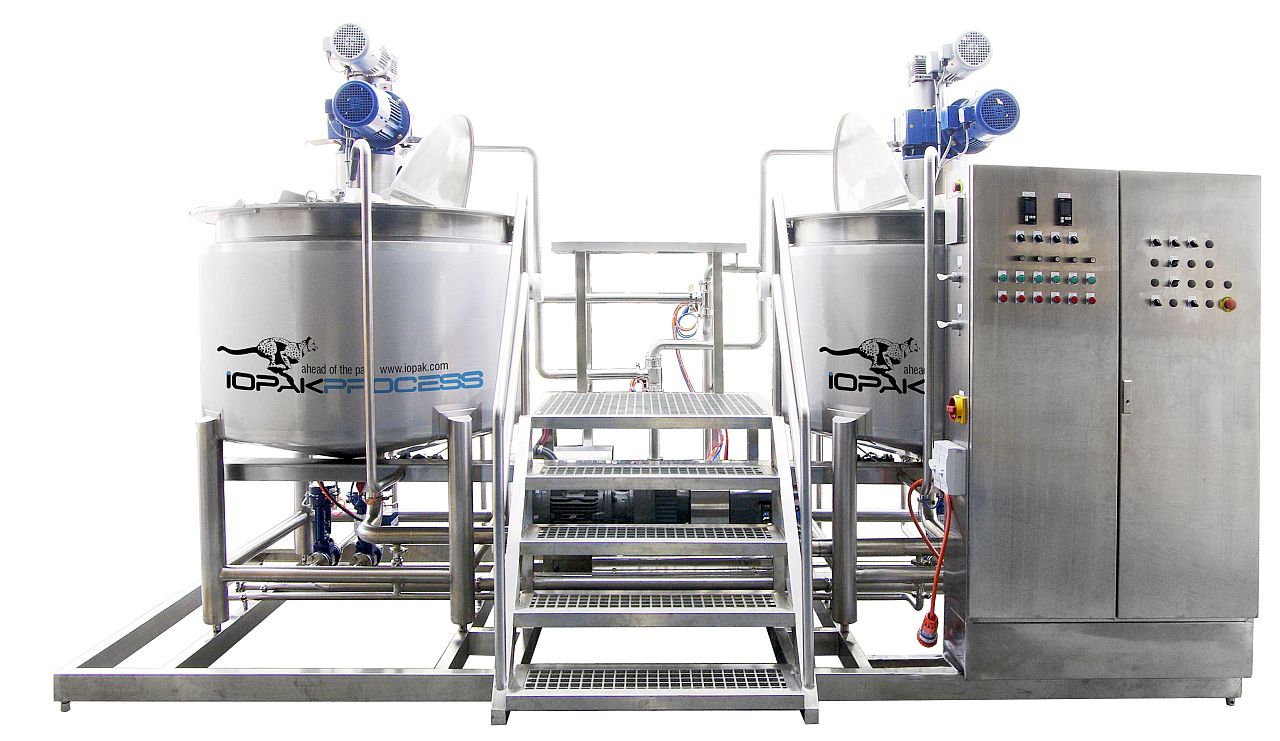

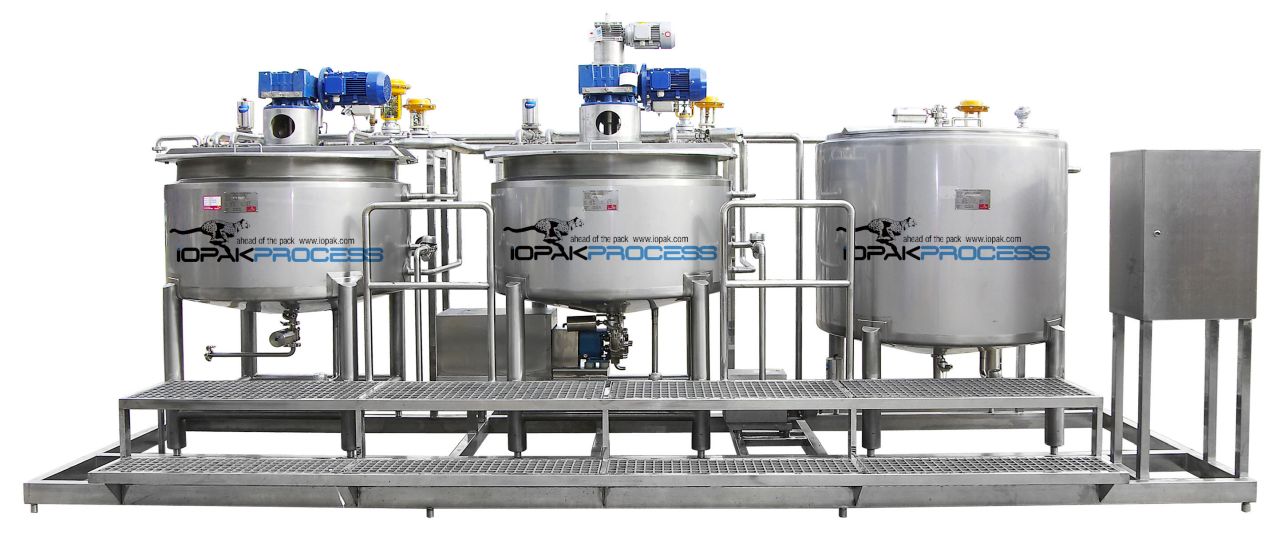

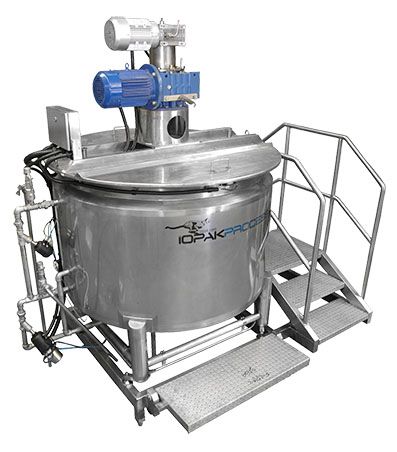

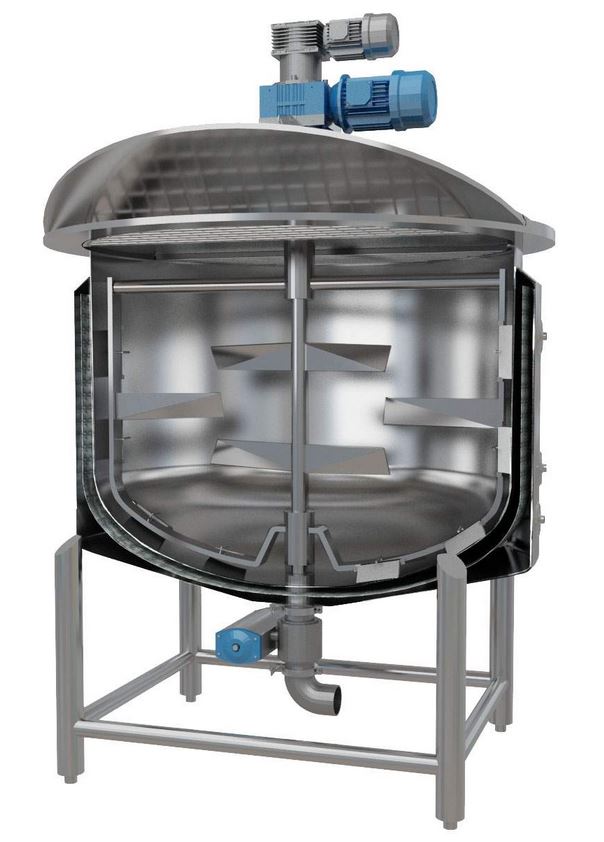

These NEW fully stainless steel constructed steam jacketed cookers / kettles can be used for cooking or cooling. The unit is fitted with a contra-rotating scrape surface mixing arm. This kettle features two half moon hinged lids for food hygiene. The interior of the tank has a dome base and is fitted with a three inch (75mm) product outlet including an air actuated discharge valve.

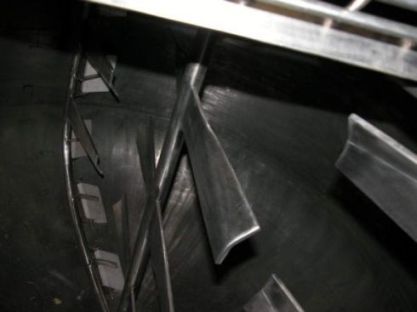

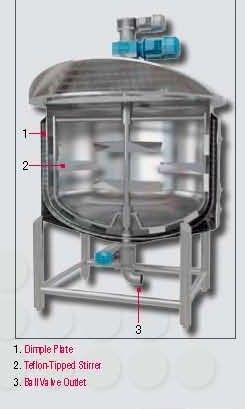

A swept surface (Teflon tipped) stirrer is top and bottom bearing supported and direct driven by a 3kW, 29rpm, 415V AC, 3 phase gear motor. An additional contra-rotating centrally mounted agitator is fitted with a 1.1kW, 49rpm gearmotor.

A digital, minus 20 to 150 degrees C, temperature indicator indicates the temperature of the tank contents.

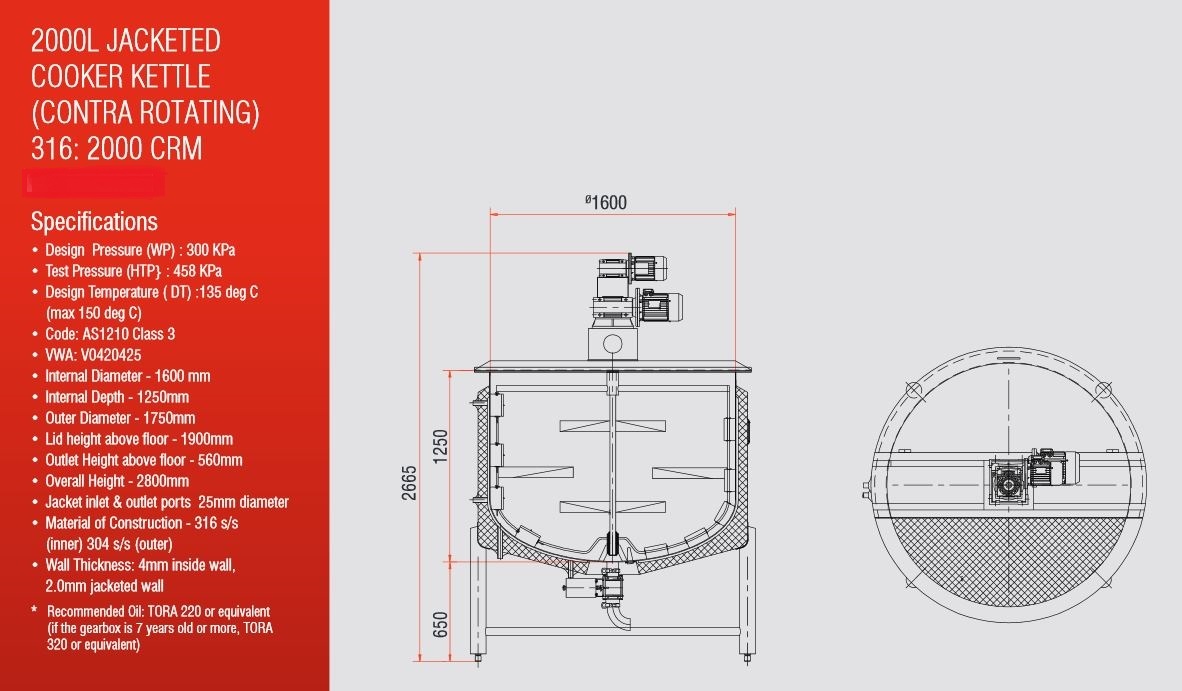

Design Pressure: 300 kPa (43.5 psi)
Test Pressure: 458 kPa (66.4 psi)
Design Temperature: 135 degrees C (max 150 degrees C)

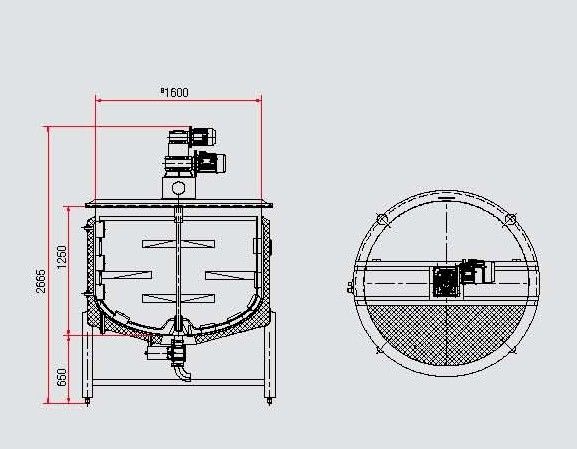

Internal Diameter: 1600mm
Internal Depth: 1250mm
Outer Diameter: 1750mm
Lid height above floor: 1900mm
Outlet Height above floor: 560mm
Jacket inlet and outlet ports: 25mm diameter
Material of Construction: 316 s/s (inner) 304 s/s (outer)
Wall Thickness: 4mm inside wall, 1.6mm jacketed wall

A video to the testing of one of this model can be viewed via clincking the following link: https://youtu.be/kw38T5eaRDA PLEASE NOTE: These require a external source of steam or hot water to run through the jacket.

The cookers that have self heating capabilities without an external heat source can be viewed via clicking the following link: www.openshaw.co.nz/products/sale/cookers/pans-self-generating
