PISTON FILLERS/DEPOSITORS (194fip)
Price (excl GST): POA
Make: Hunter
Model No: 2400 Series
Motor: air
Condition: New
Location: New Zealand
Capacity: up to 1000ml

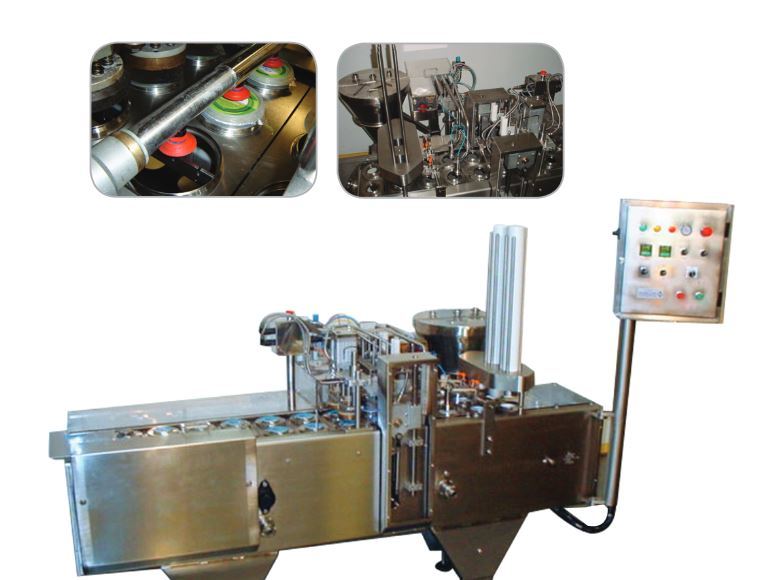

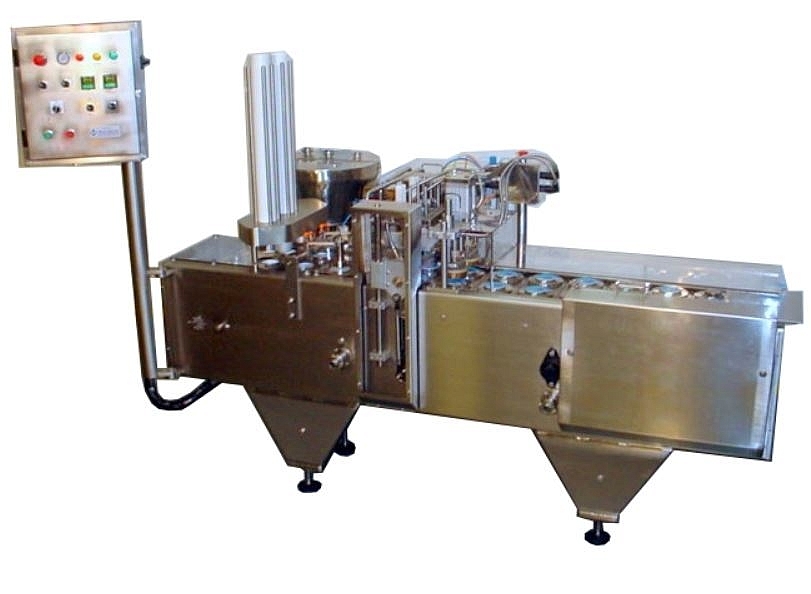

These NEW 2400 series units are a fully automatic filling and lidding machine available in a 2, 3, or 4 lane indexing conveyor for filling and lidding of tubs.
The system is capable of 50 cycles per minute, enabling outputs up to 200 containers per minute on four track machines depending on product type and container size.
They are designed to handle a wide range of stackable (round or rectangular) tubs, generally up to 1kg / 1 litre capacity.
Construction is generally corrosion resistant - type 304 stainless steel is used for all framework, external sheathing and control enclosures - type 316 stainless steel for product contact parts on the filling head. Turntable drive is mechanical - via a hydraulic drive incorporating overload protection. Container and lid handing functions are cam actuated with some pneumatic assistance. Systems for liquid or semi-liquid products generally incorporate a pneumatically operated piston filler (with bottom-up fill if necessary).
Microprocessor (PLC) control of all functions ensures exceptional reliability and together with numerous solid state sensing devices, provides many interlocks and safeguards including the standard no container/no fill and no container/no lid features on all machines.
A wide range of container sizes (up to 150.0mm max dimension) can be accommodated by the use of change parts.
Features include:
• Systems often incorporate Hunter volumetric fillers (model 305 or model 505),
• Microprocessor (PLC) control on all functions ensures exceptional reliability,
• Standard no container / no fill and no container / no lid features,
• Safety guarding and interlock to appropriate standards,
• Optional bottom-down fill (container lift) at 2 filling stations,
• Change parts available for different sized containers and lids,
• Ejection of tub to optional outfeed conveyor and collating table.
Products currently being packed by Hunter fillers include:
Foodstuffs:
Butter, margarine, processed cheese, yoghurt, yeast extracts, pate, jams, stews, bread dough, sauces, mayonnaise and salad dressings, peanut butter, honey, chutneys and pickles, cooking oils, fruit juices, cordials, toppings and flavourings.
Cosmetics:
Lotions, shampoos, conditioners, nail varnishes and various creams.
Other:
Detergents, disinfectants, bleaches, motor oils, printing inks, epoxy resins, paints, adhesives, caulking compounds, weed killers, garden & agricultural chemicals, veterinary and ethical supplies.
