CITRUS JUICERS (330wi)

ENQUIRE NOW SIMILAR ITEMS

Price (excl GST): POA

Motor: 3ph, 5.5kW

Condition: New

Location: Italy

Output: upto 15,000 fruits/hr

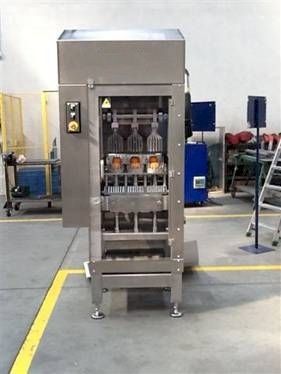

These NEW citrus juicere / extractors are designed to produce high quality drinkable juice from whole fruits. This machine has been studied and manufactured to process citrus fruits having a diameter ranging from 55 to 75-80 mm with strong peels, such as oranges, lemons and mandarins, to obtain high quality juice. It can also process fruits with diameters ranging from 45 to 100mm. This 3 head model has a working capacity of approx 15,000 fruits/hour.

Juice extraction is obtained from the centre of the fruit by means of centripetal compression carried out by suitable penetrating star-shaped cups. The fruit is perforated and compressed in a juice squeezing and refining cylinder, with peel separation.

The machine consists of:
- stainless steel supporting structure, easy to open in order to reach the different mechanical devices which compose the machine
- connecting rod device for alternate motion of the extraction devices driven by orthogonal ratio motor
- rotating feeder with mechanical guide
- three couples of penetrating cups for the juice extraction, manufactured in stainless steel and complete with perforating and juice refining cylinder, pulp ejection chamber and exhausted peels ejection chute
- juice collector, easy to open and inspect, manufactured in stainless steel and connectable to a collecting tank or a refining machine

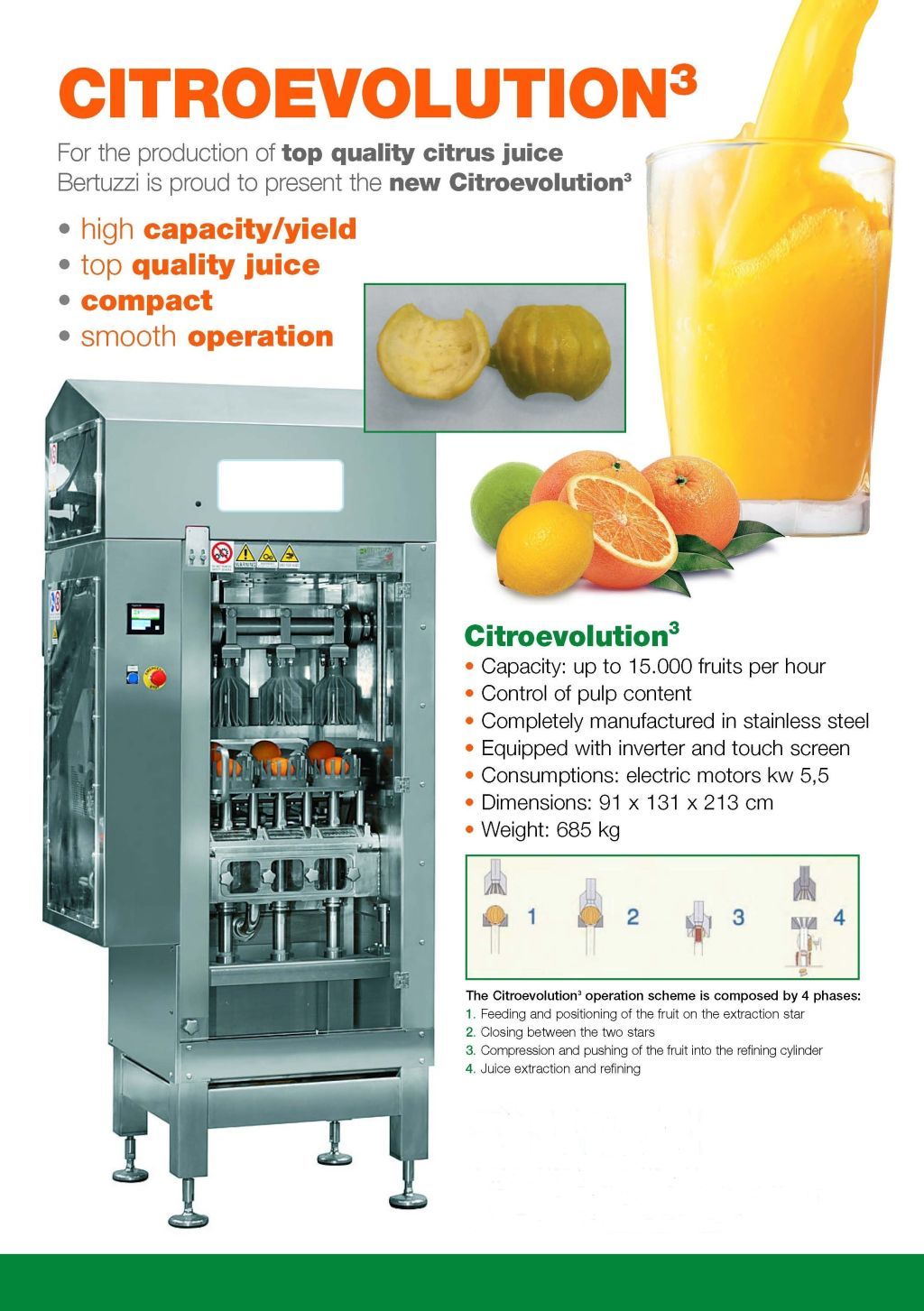

All parts in contact with the product are manufactured in stainless steel Aisi 304. Electric motors power consumption is 5.50kW. Please enquire for specification sheet shown in the photo in a larger format if required.
