STAINLESS MULTISTAGE PUMPS (293puc)

ENQUIRE NOW SIMILAR ITEMS

Price (excl GST): POA

Model No: FM

Motor: 3ph, various

Condition: New

Location: New Zealand

Capacity: upto 80m3/hr

Inlet Diam: various

Outlet: various

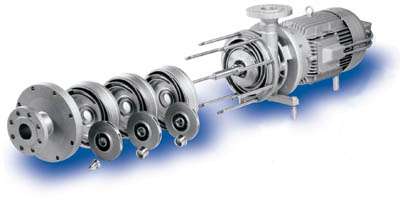

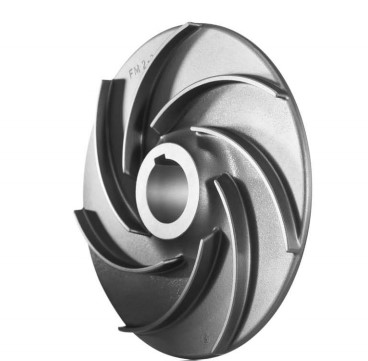

These NEW multistage centrifugal pumps have been developed specially for the purpose of generating high pressures and for operation under extreme pressure conditions. The capability to increase pressure to 30 bar (435 psi) and system pressure capacity of up to 60 bar (870 psi) make them ideal for use under particularly high pressure conditions, and in special processes such as feeding filters, heat exchangers, fillers, as well as circulation and pressure boosting in ultra-filtration and reverse osmosis systems. The pressure is increased by several successive pump stages. They have mechanical seals and are directly driven. These pumps can come several sizes which are as follows: FM2; 2-5 stages, impeller diameter up to 160mm, system pressures up to 20 bar (290 psi), discharge pressures up to 12 bar (174 psi), and flow rates up to 35m3/hr. FM3; 1-4 stages, impeller diameter up to 175mm, system pressures up to 60 bar (870 psi), discharge pressures up to 13 bar (188 psi), and flow rates up to 80m3/h. FM4; 2 - 4 stages, impeller diameter up to 250mm, for system pressures up to 40 bar (580 psi), discharge pressures up to 28 bar (406 psi), and flow rates up to 40m3/hr. Please enquire for pump curves for the various sizes along with full specifications if required.
