SORTING ALIGNING BELT CONVEYOR (1099co)

ENQUIRE NOW SIMILAR ITEMS

Price (excl GST): offers

Length: 8200

Width: 950

Height: 1200

Motor: 3ph

Condition: v good

Location: New Zealand

Material: stainless/plastic belt

Belt Length: 8150

Belt Width: 830

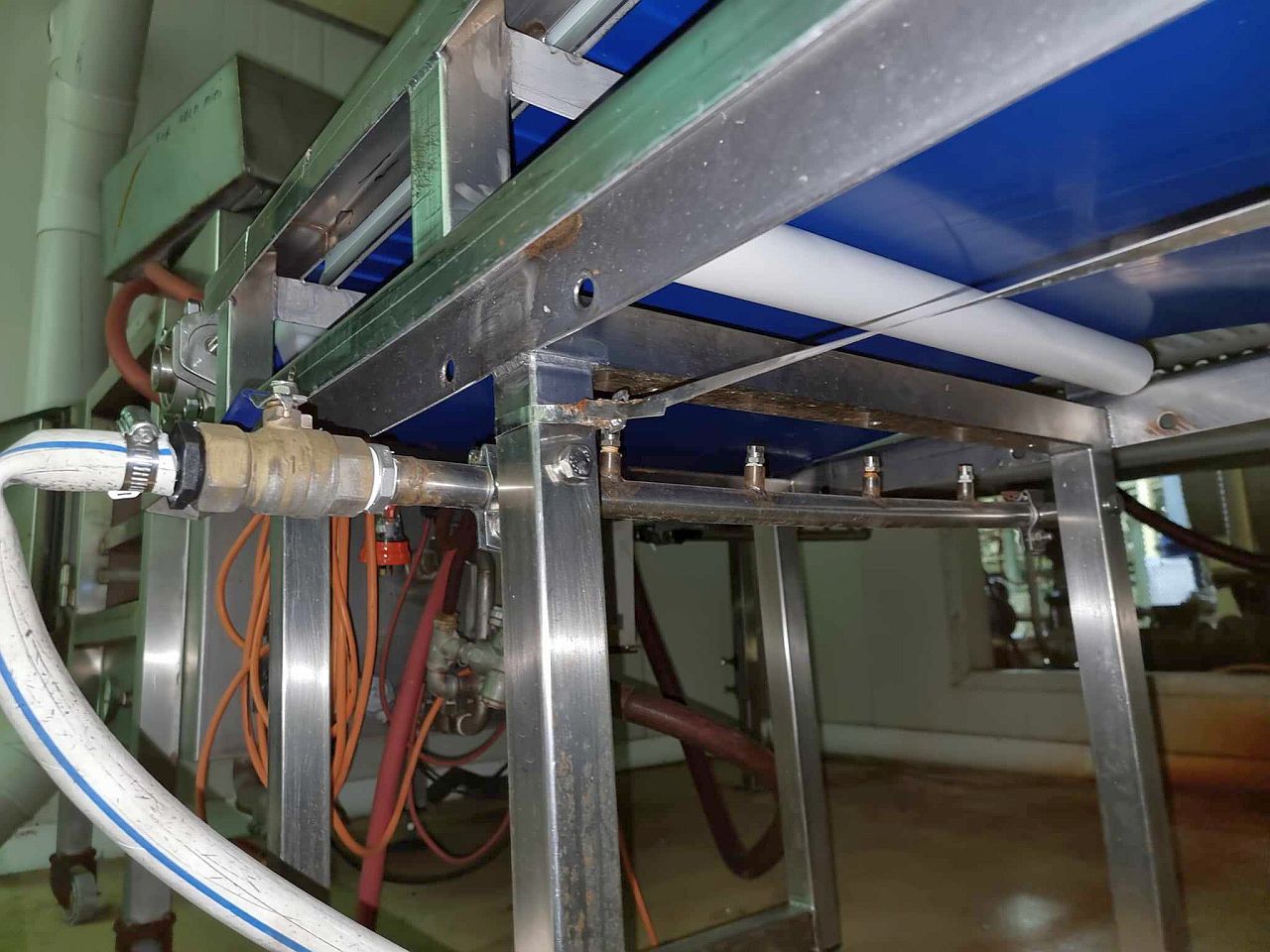

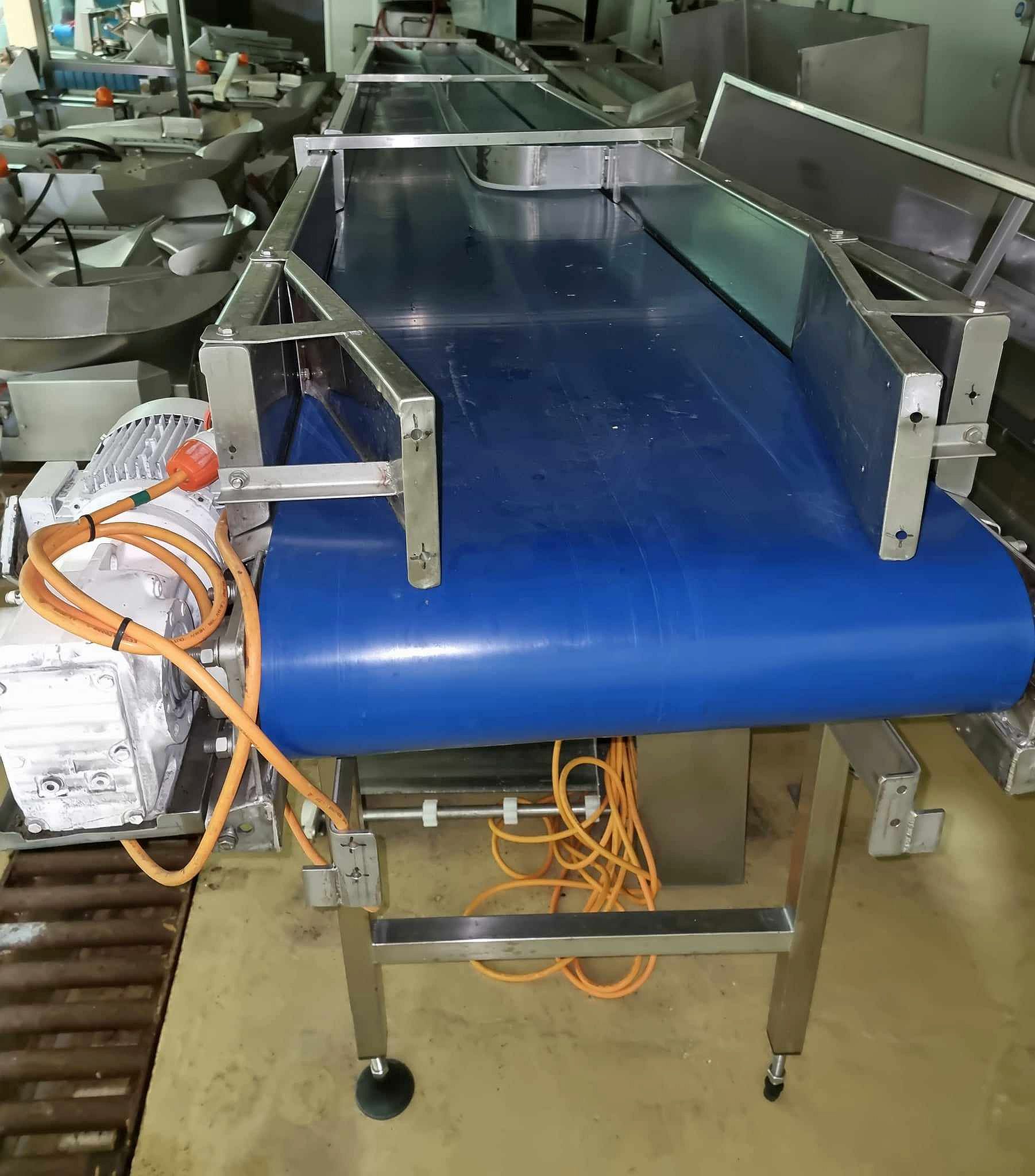

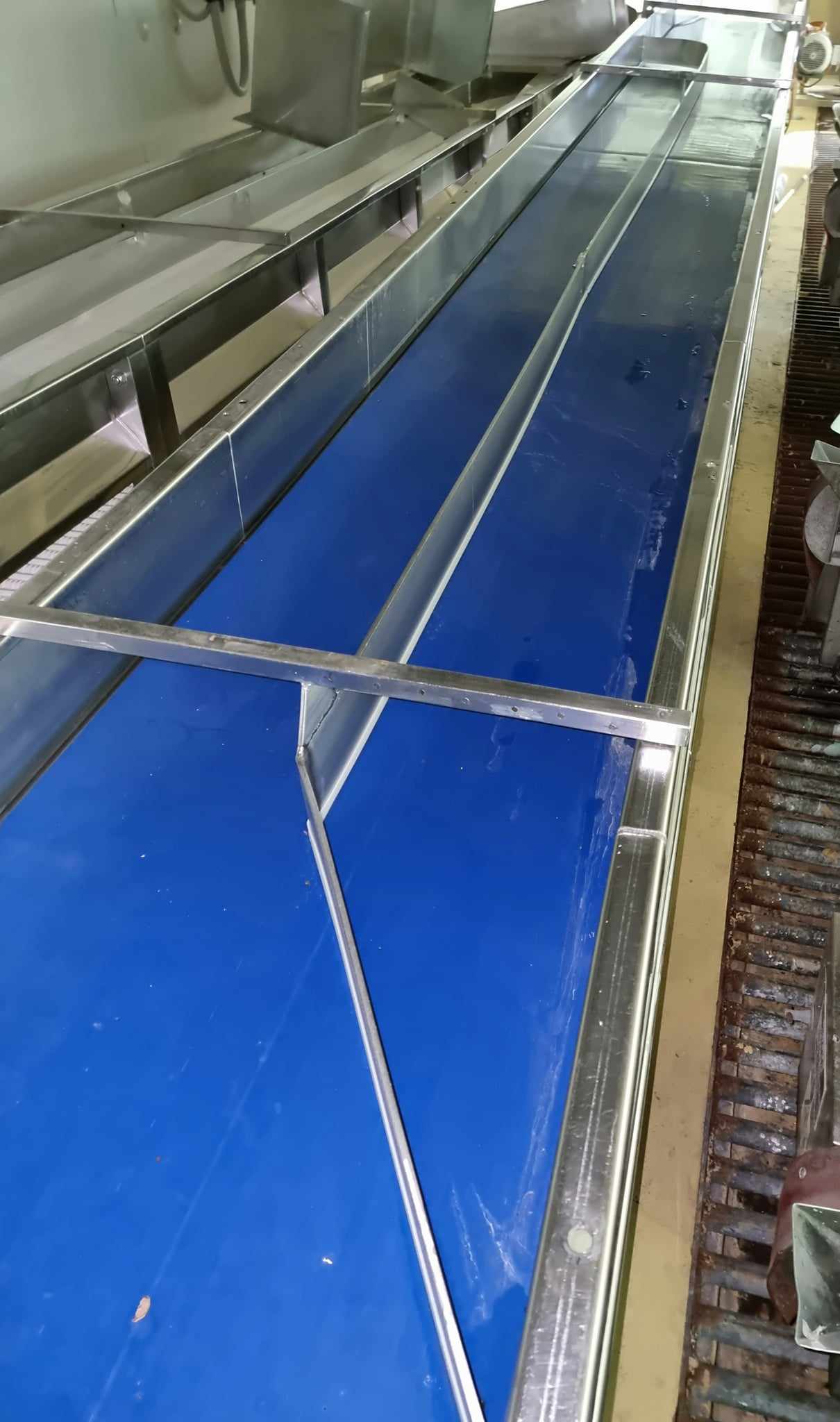

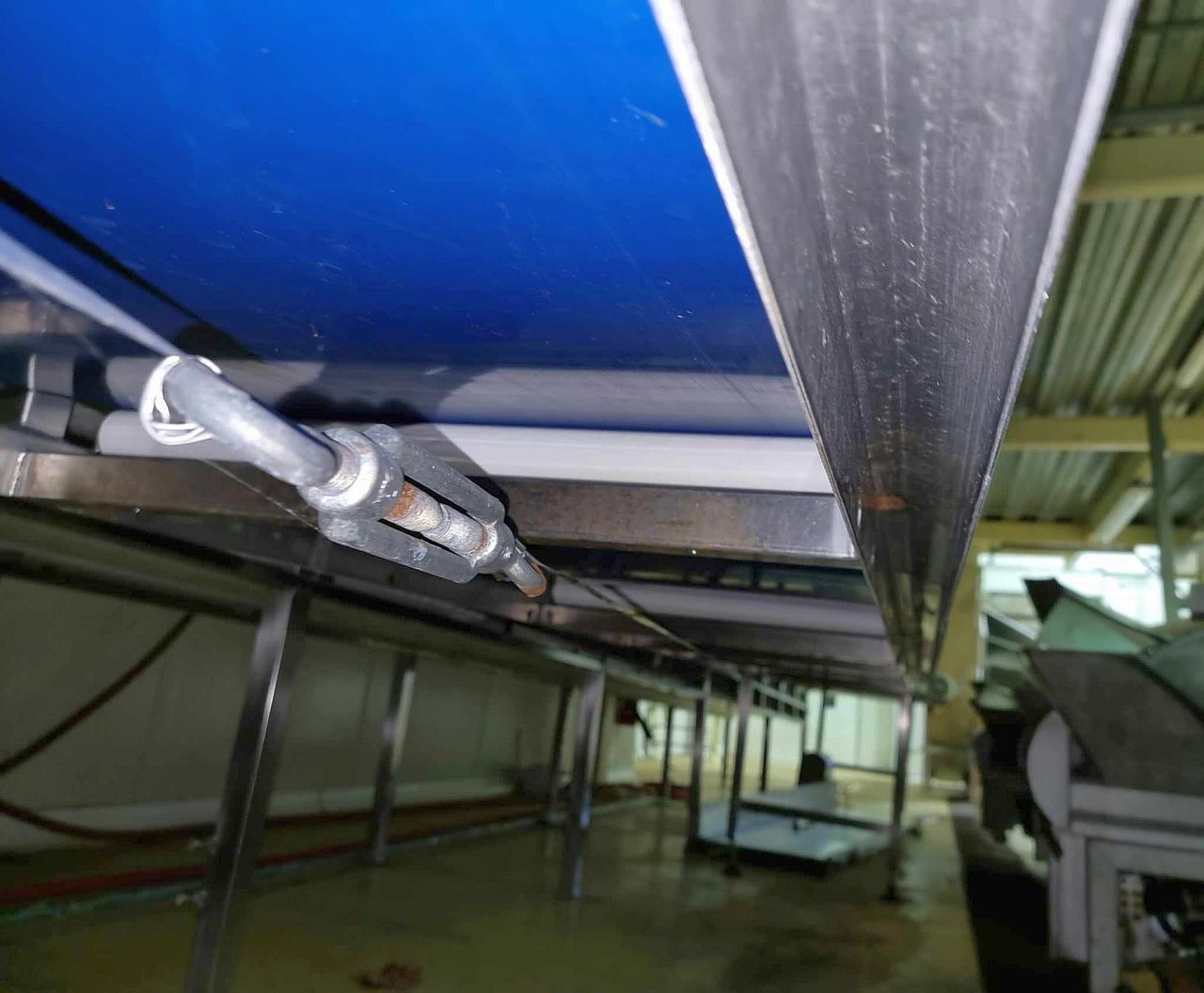

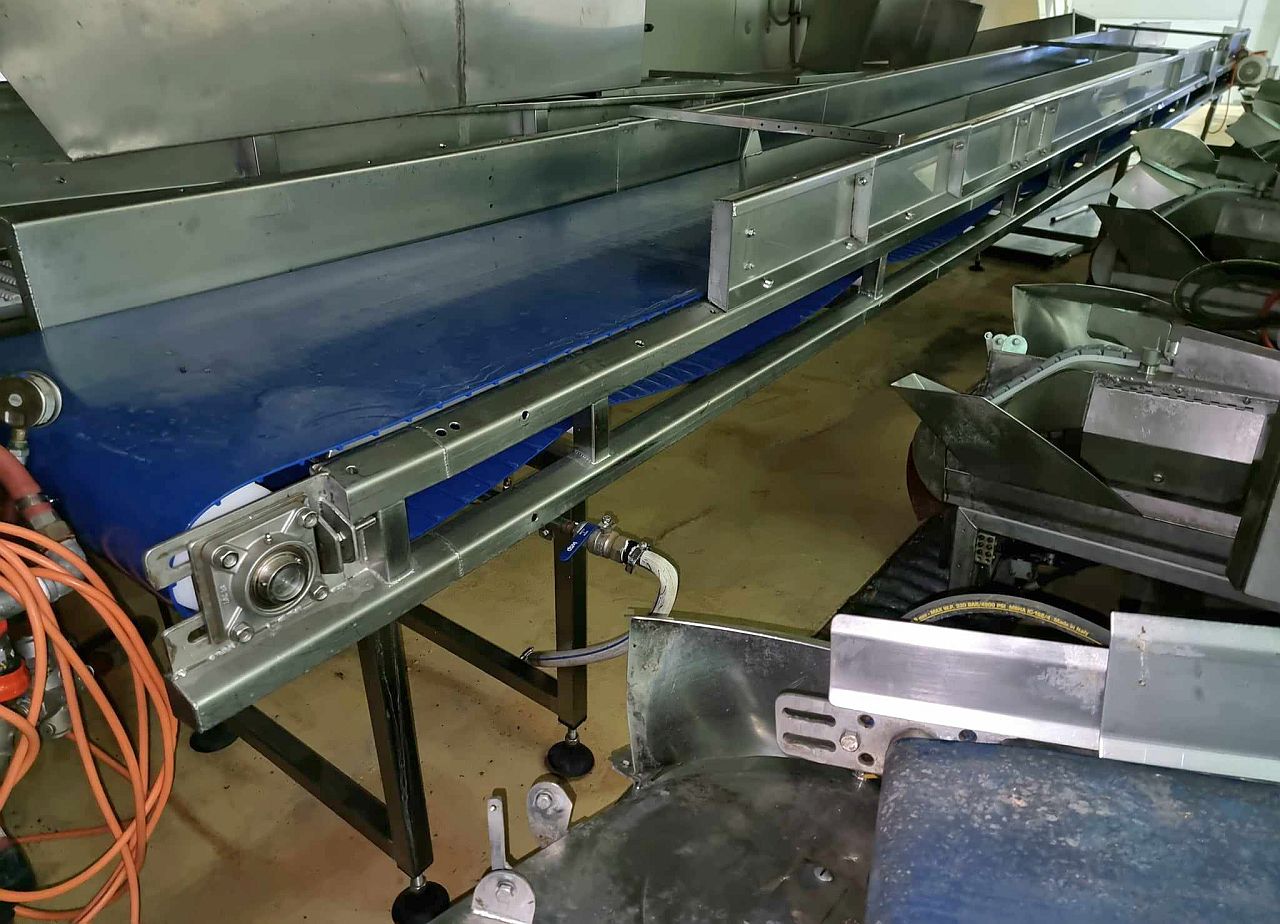

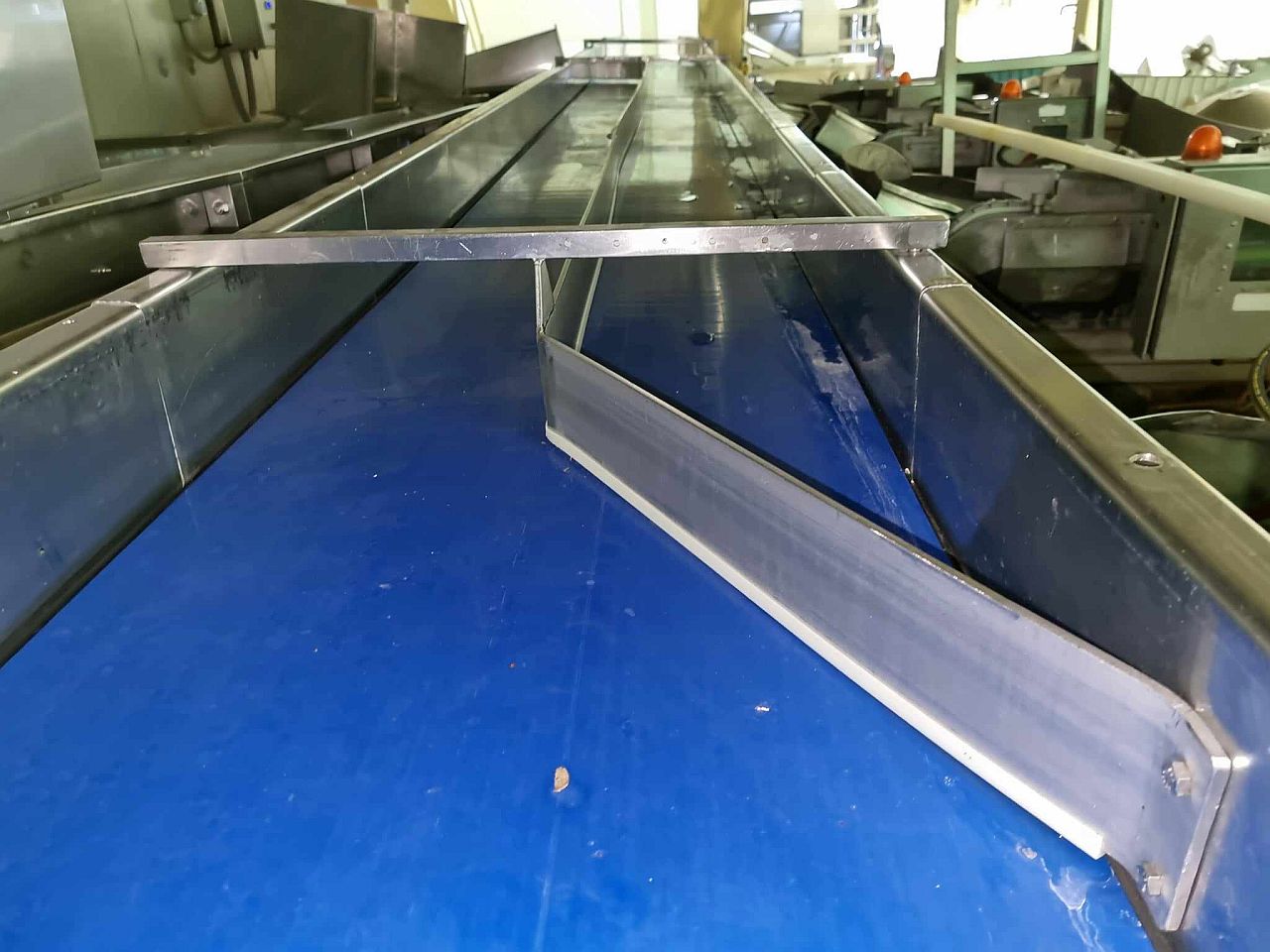

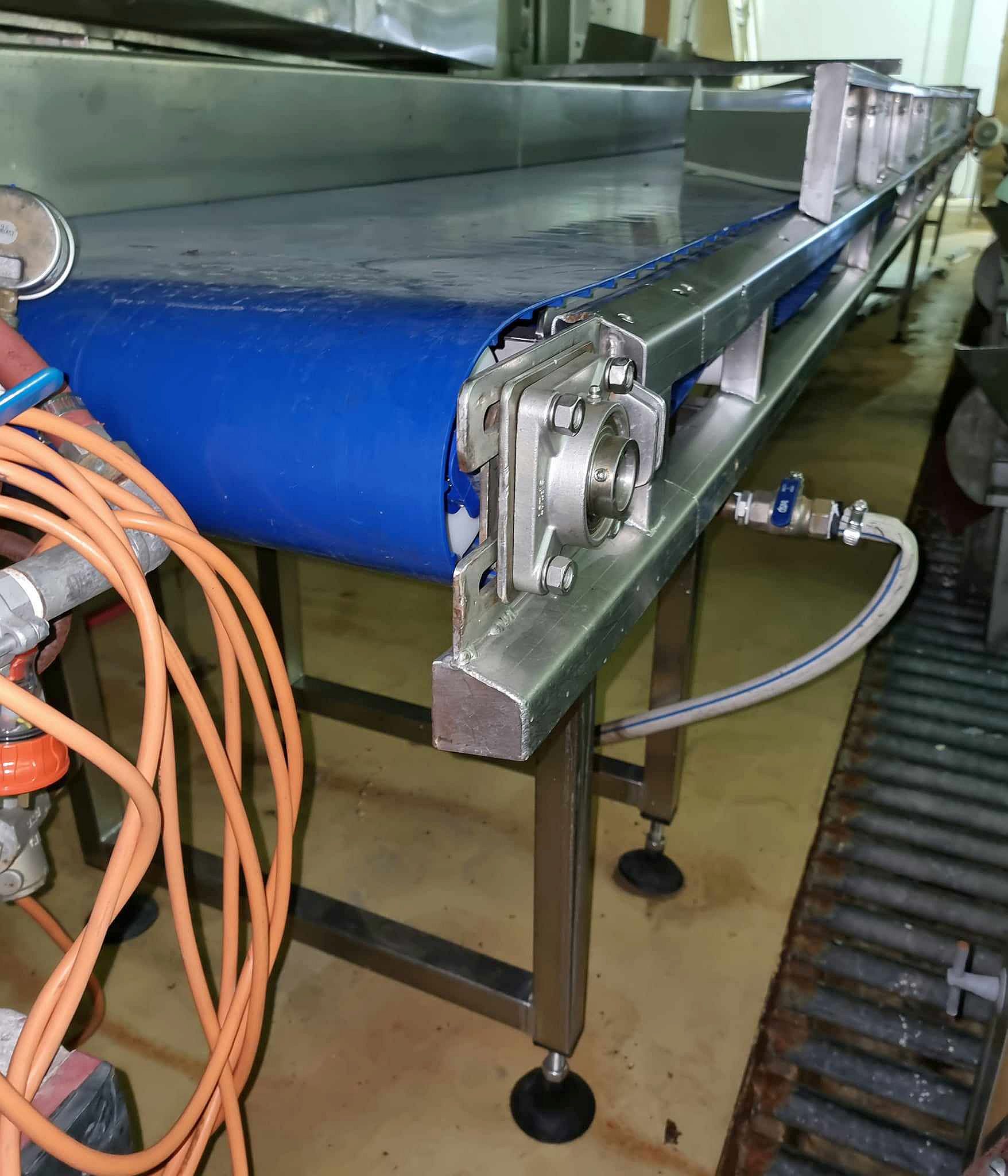

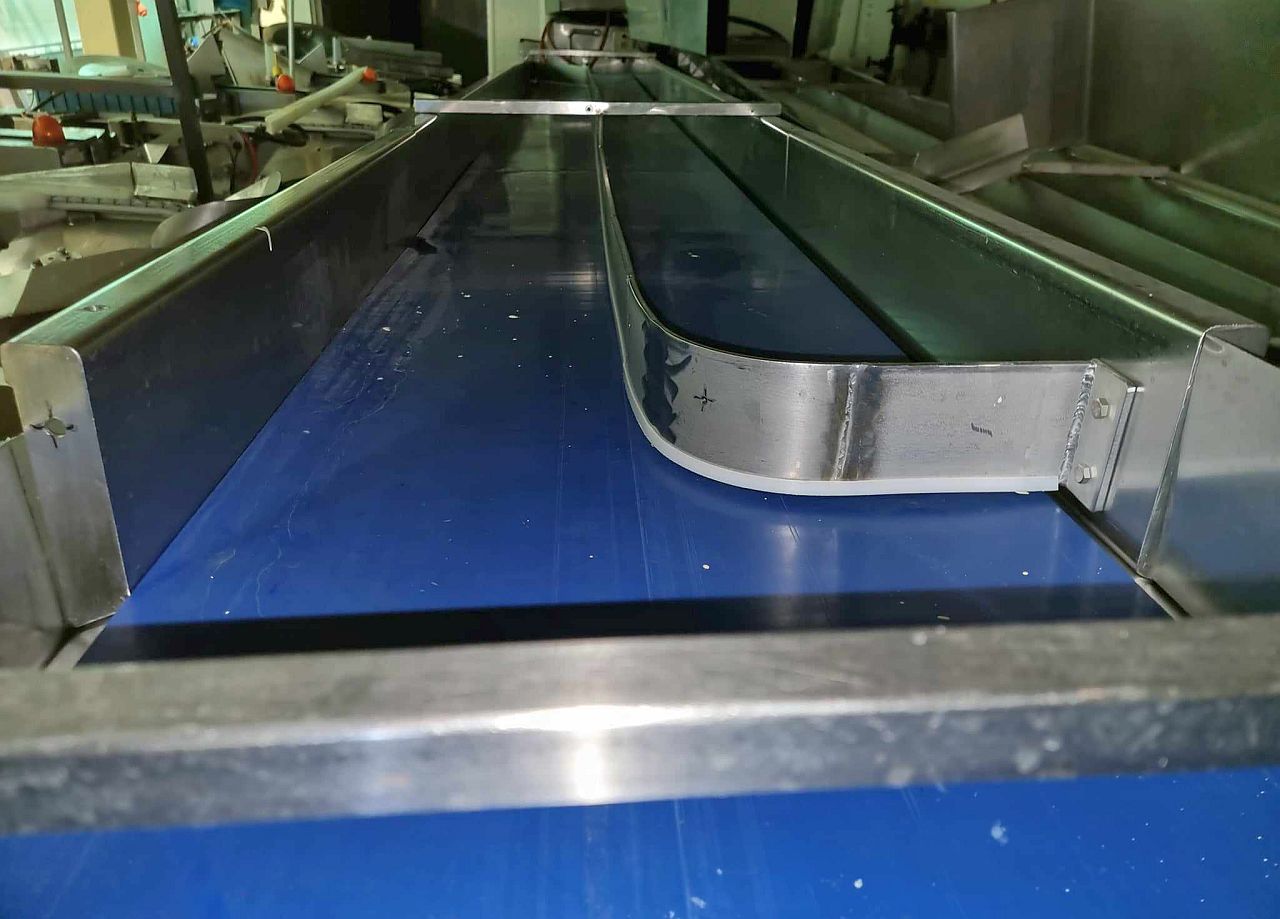

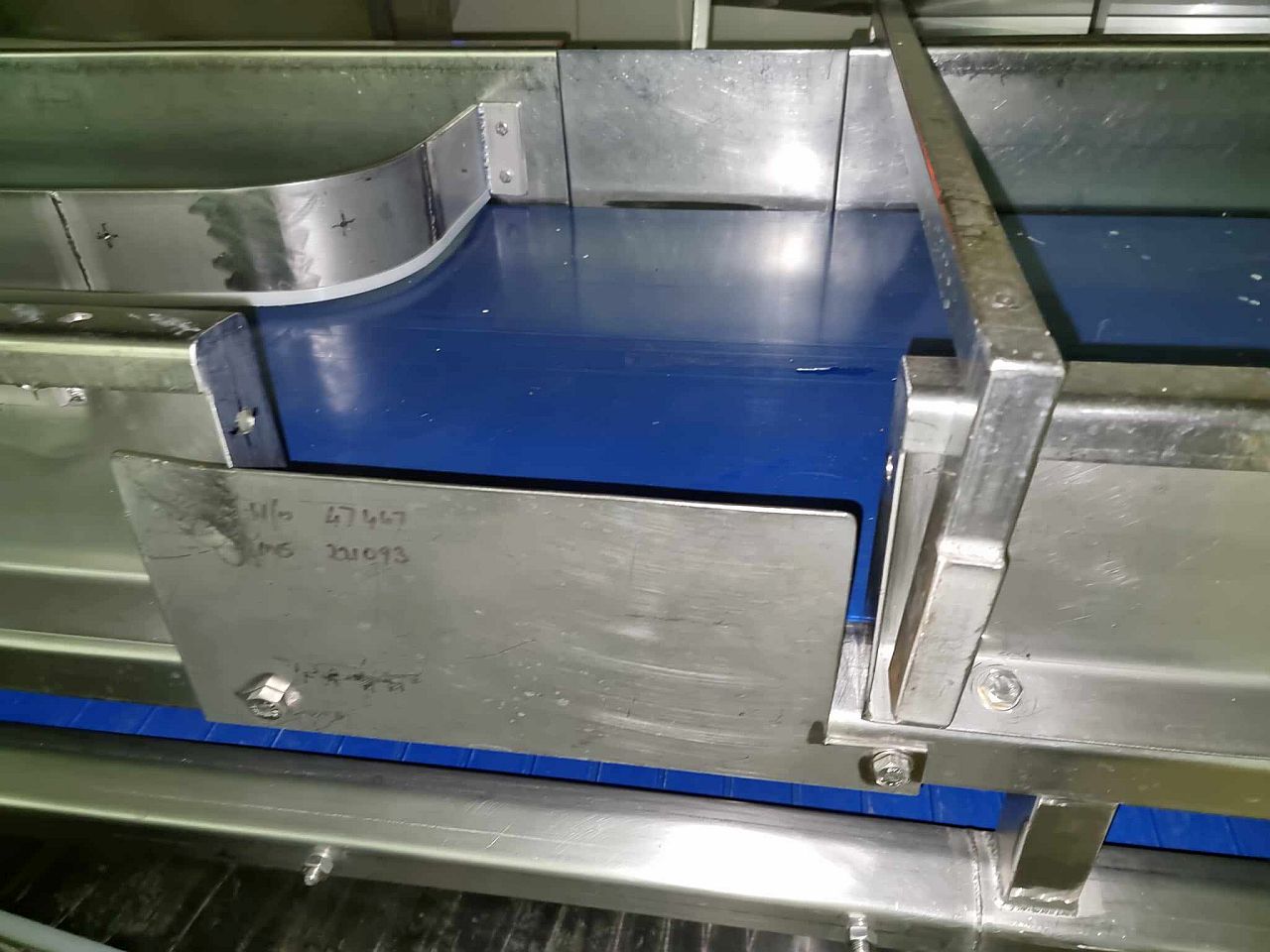

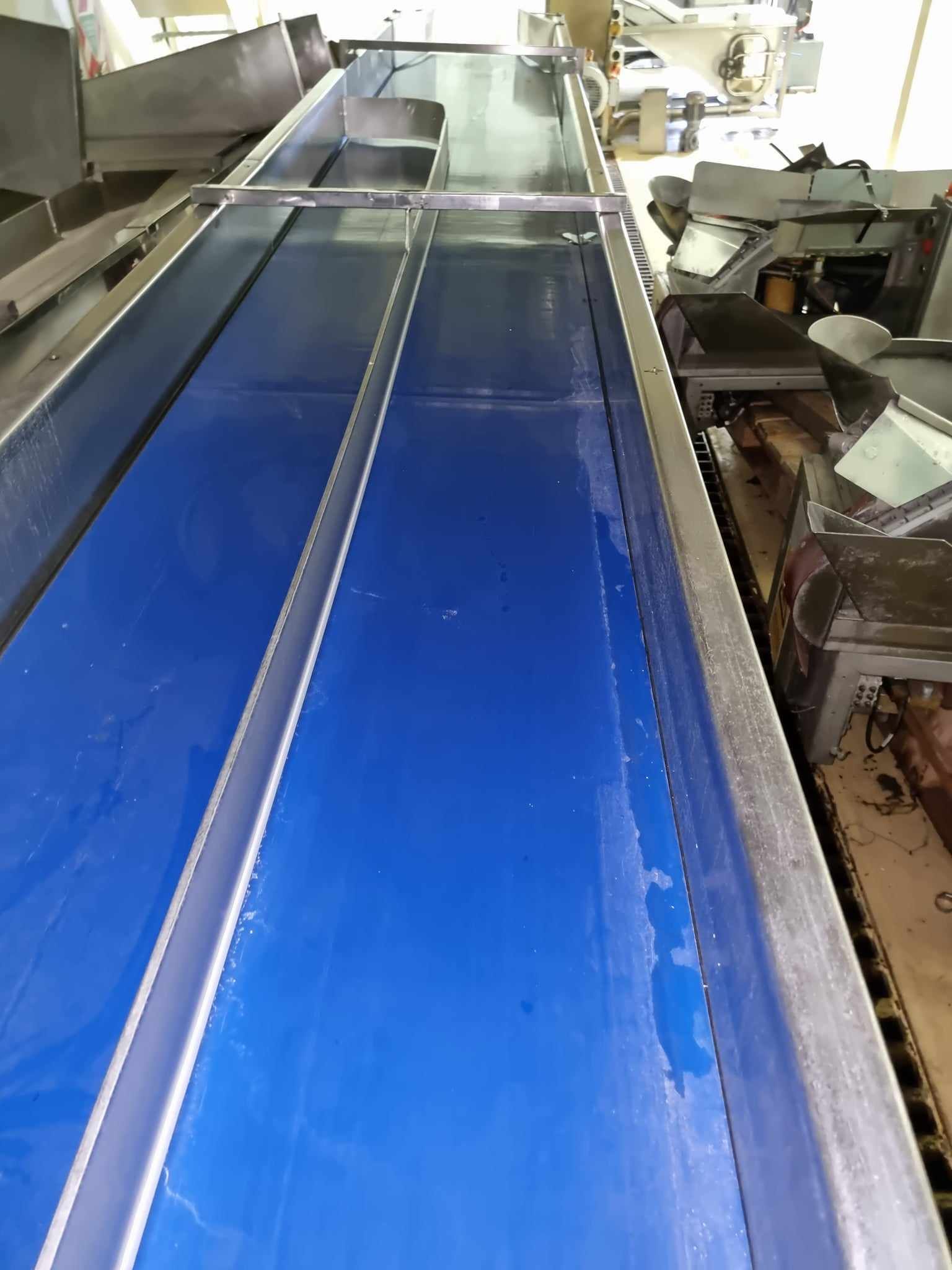

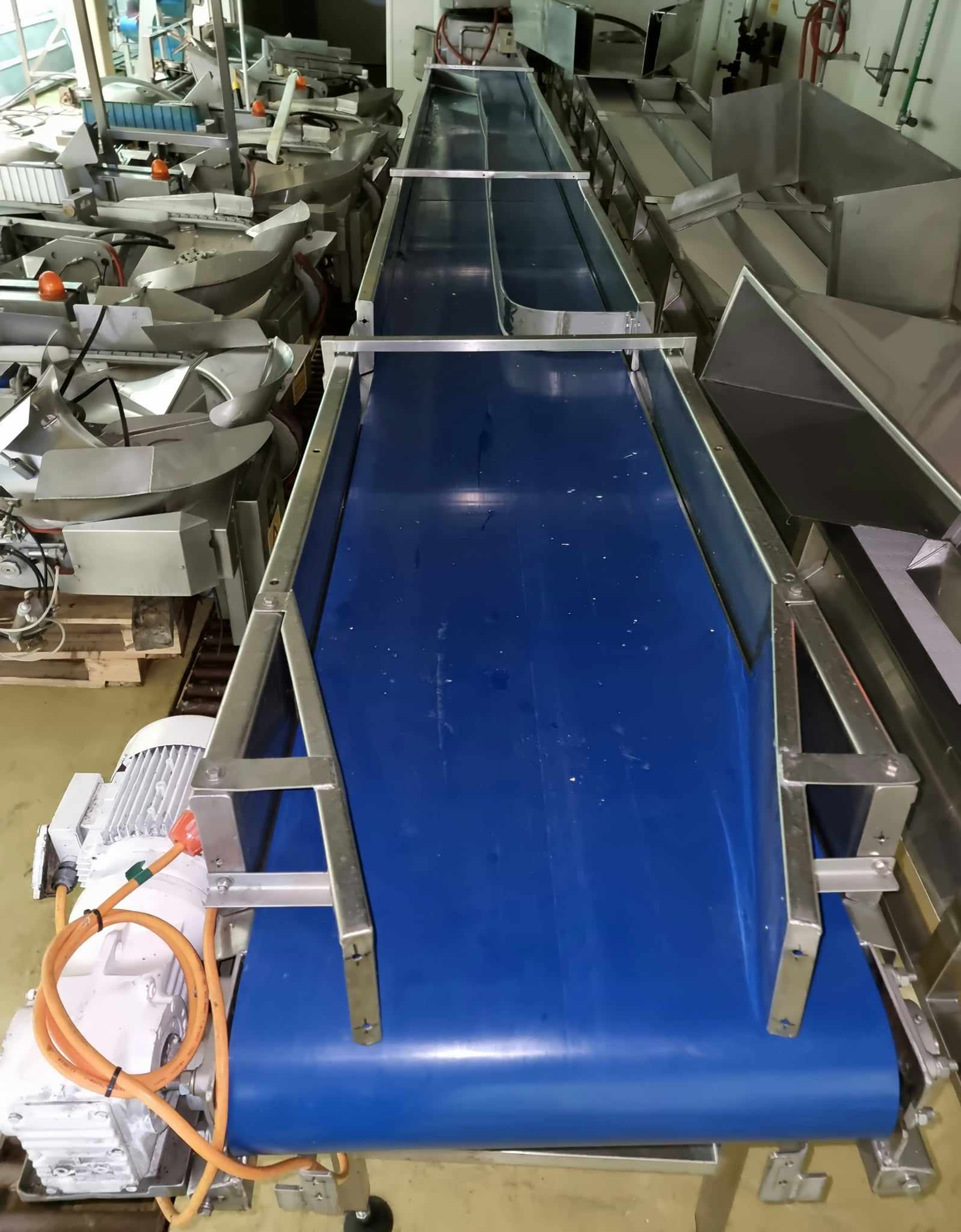

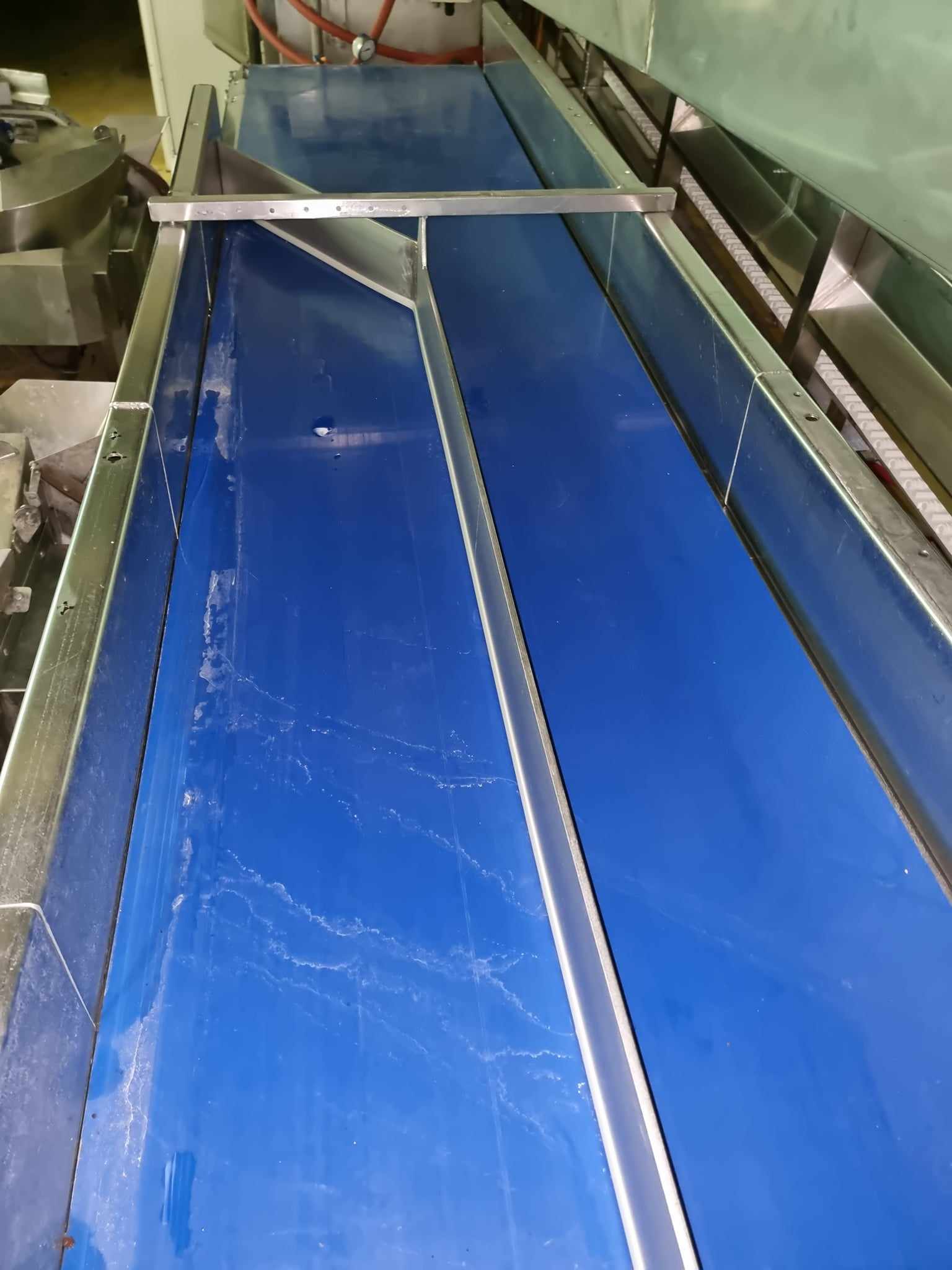

This used/secondhand belt conveyor which has stainless steel framing and is mounted on height/levelling adjustable jacking screw feet. The conveyor has belting 830mm wide x 8150mm long walls either side of the belting 160mm high. The conveyor has no walls on the right hand side for the initial 950mm and is fitted with removable guides which gives a centre partition leaving a useable belt with each side of this partition 315mm in width. The conveyor has 300mm side walls openings situated approximately 1700mm from the end of the conveyor where product could be diverted off the belt. The conveyor operates and discharges 1050mm above the ground and is fitted with angled framing to reduce the end exit to 355mm wide. The conveyor has belt wash spray boom on the underside of the conveyor near the start of the belt return.

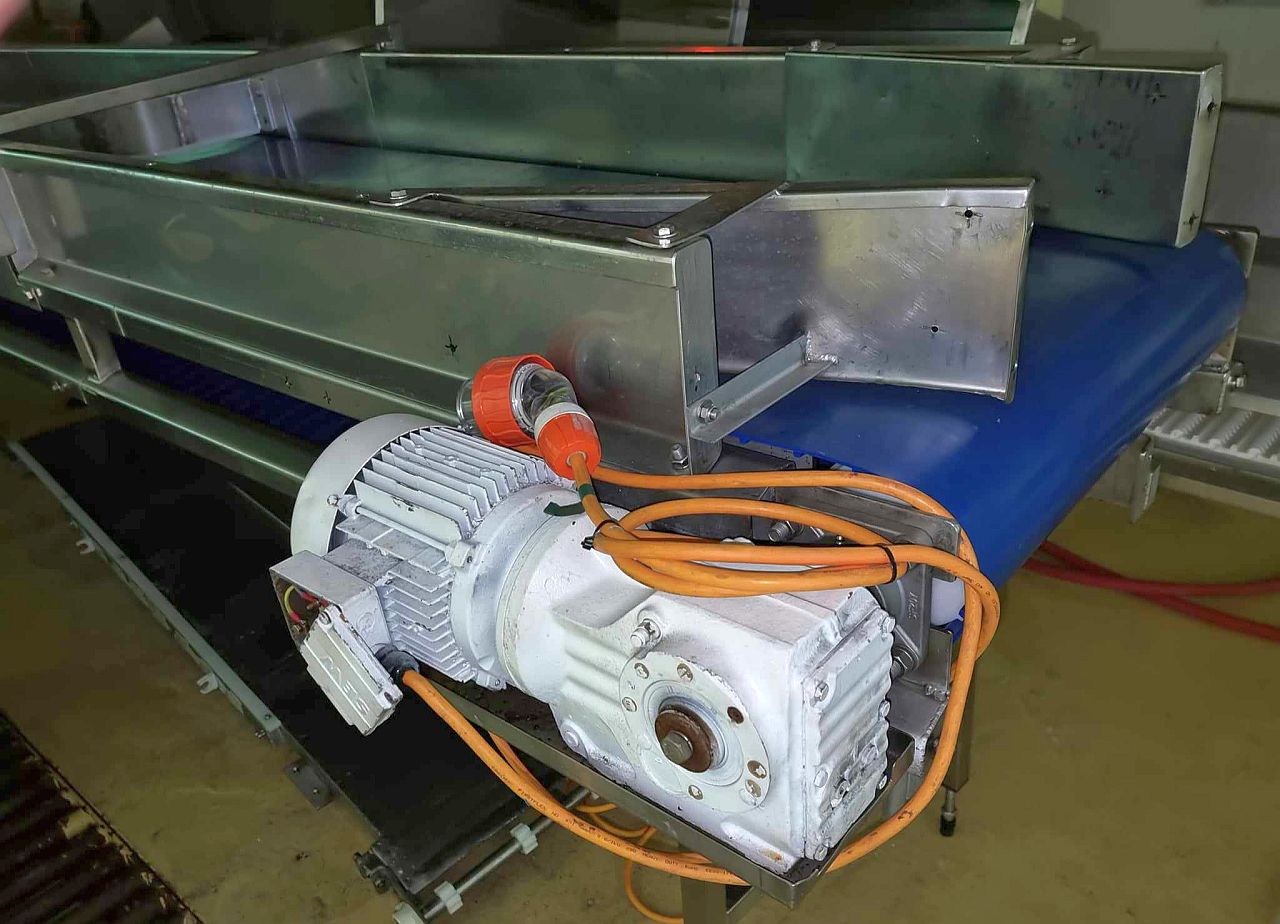

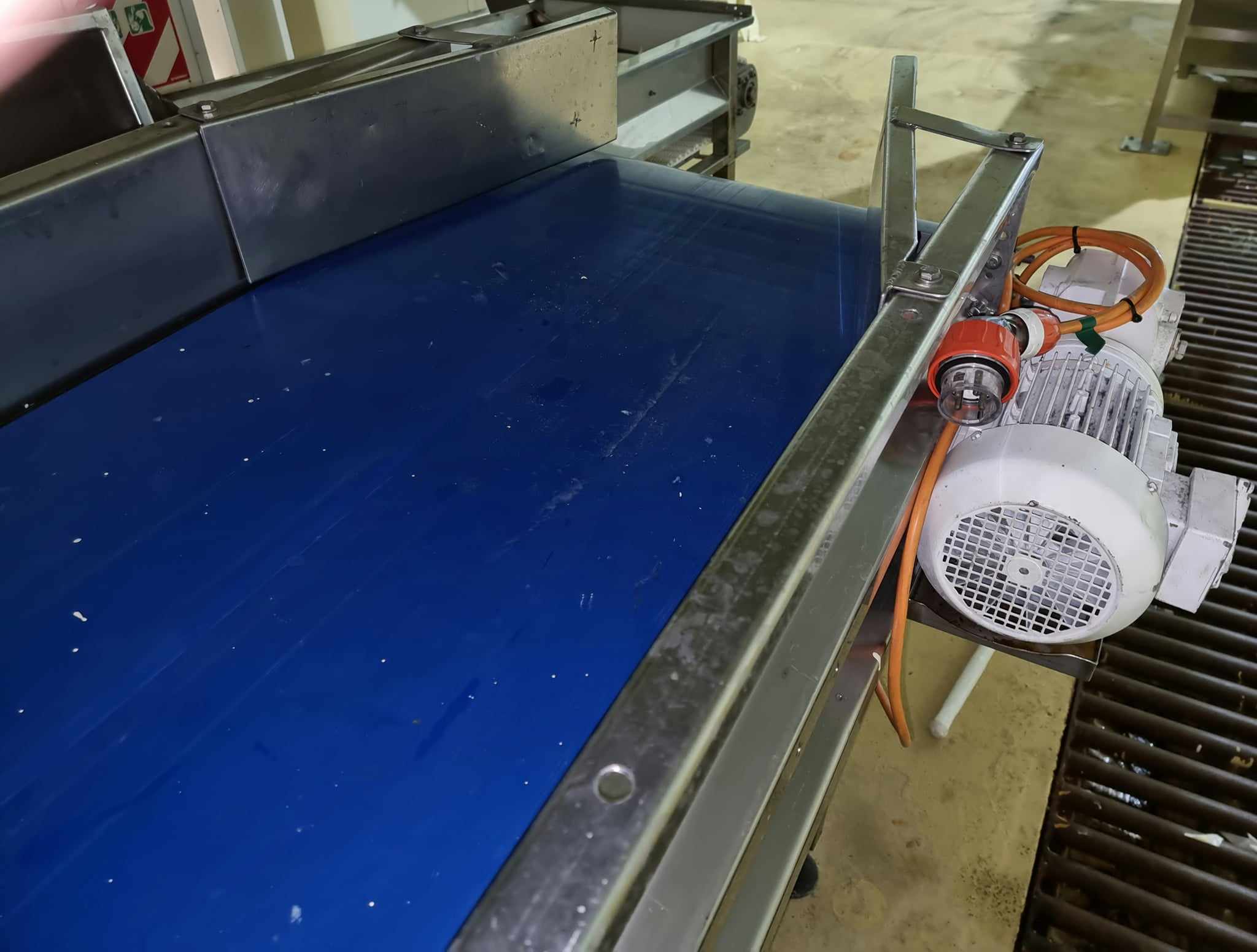

It requires 3 phase power supply for the geared motor and overall the conveyor measures 8200mm long x 950mm wide x 1200m high.
