VIBRATORY SHAKER SCREEN (293si)

ENQUIRE NOW SIMILAR ITEMS

Price (excl GST): $35,000

Make: Key

Length: 4500

Width: 2100

Height: 2500

Motor: 3ph

Condition: good

Location: New Zealand

Type: screen

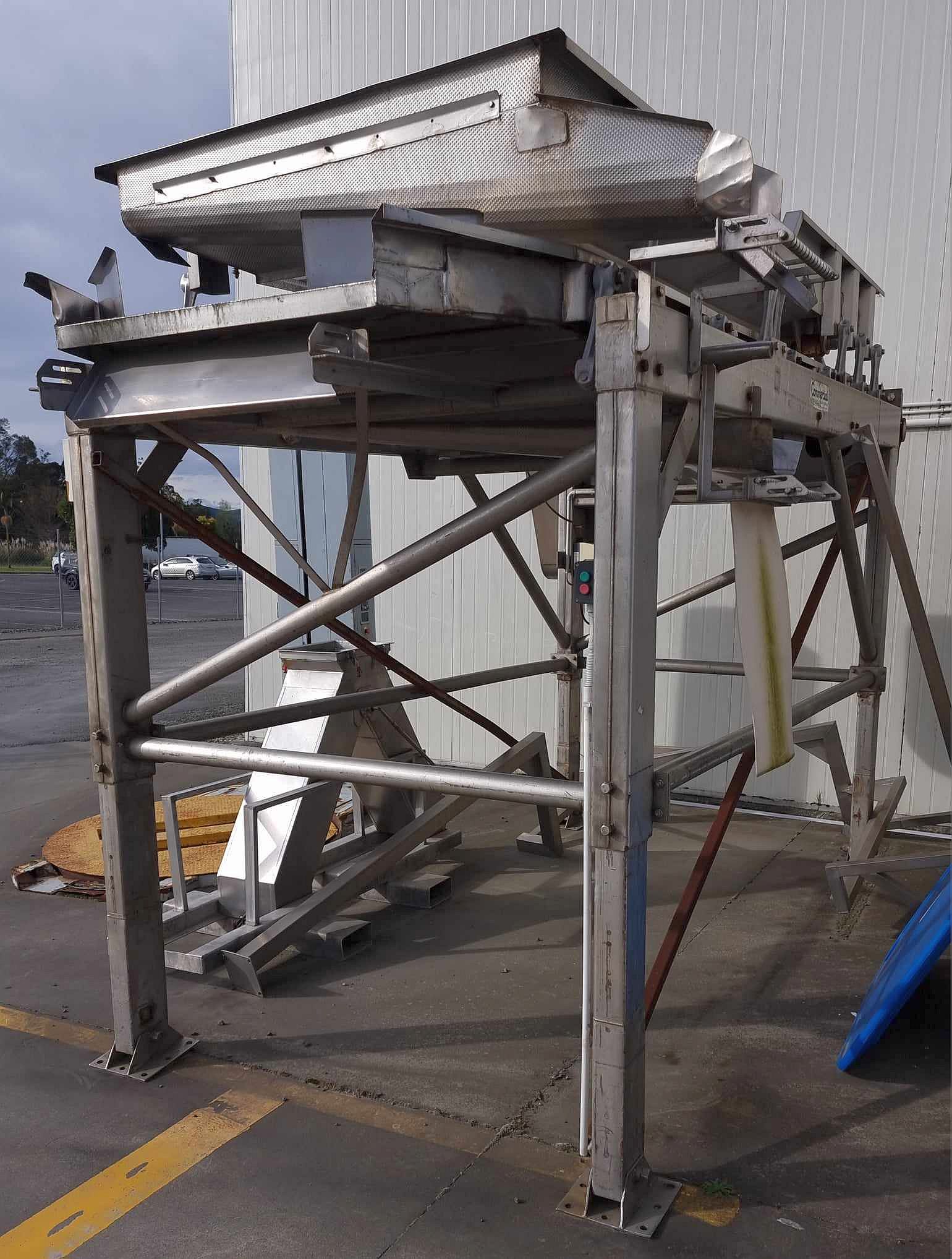

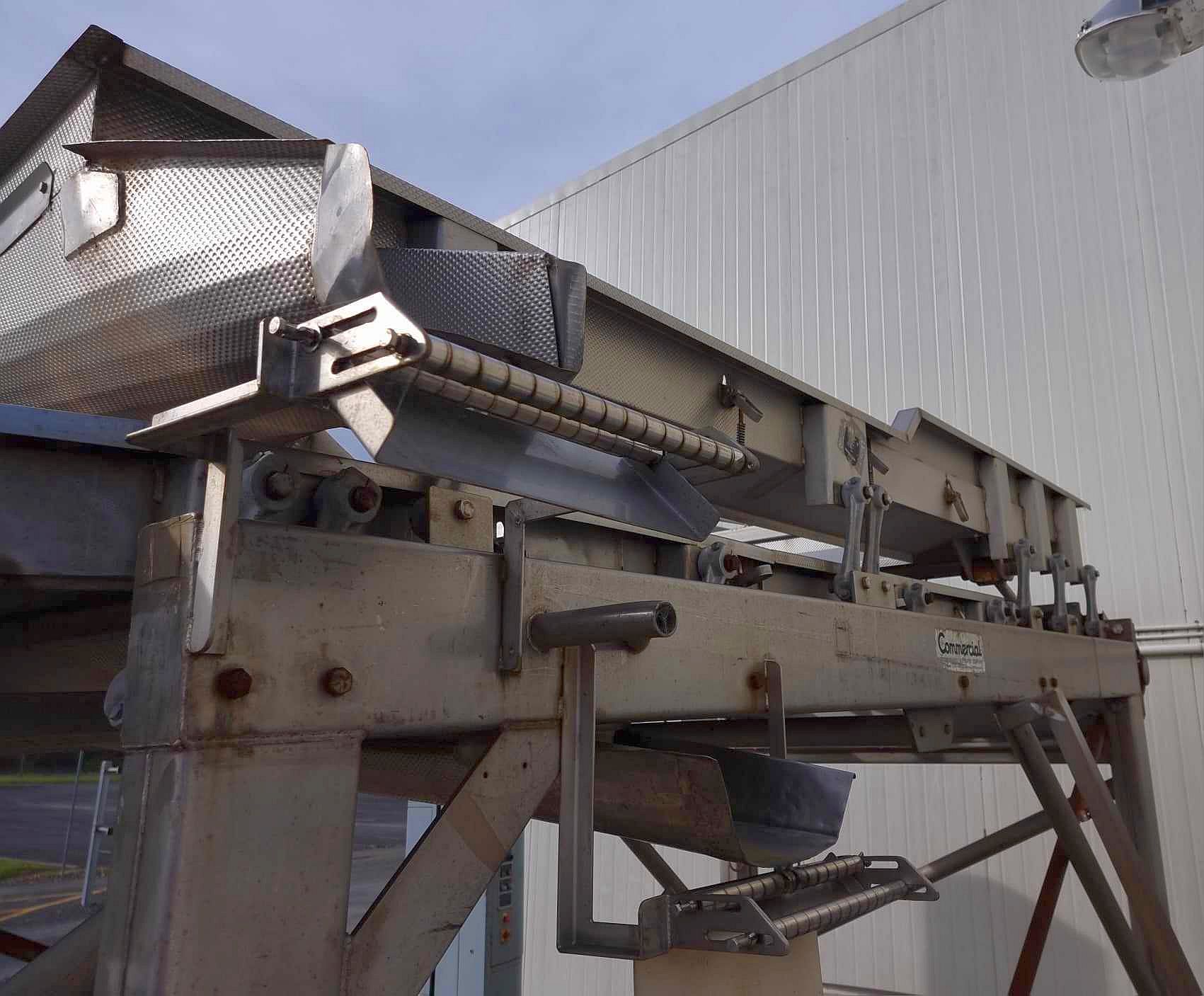

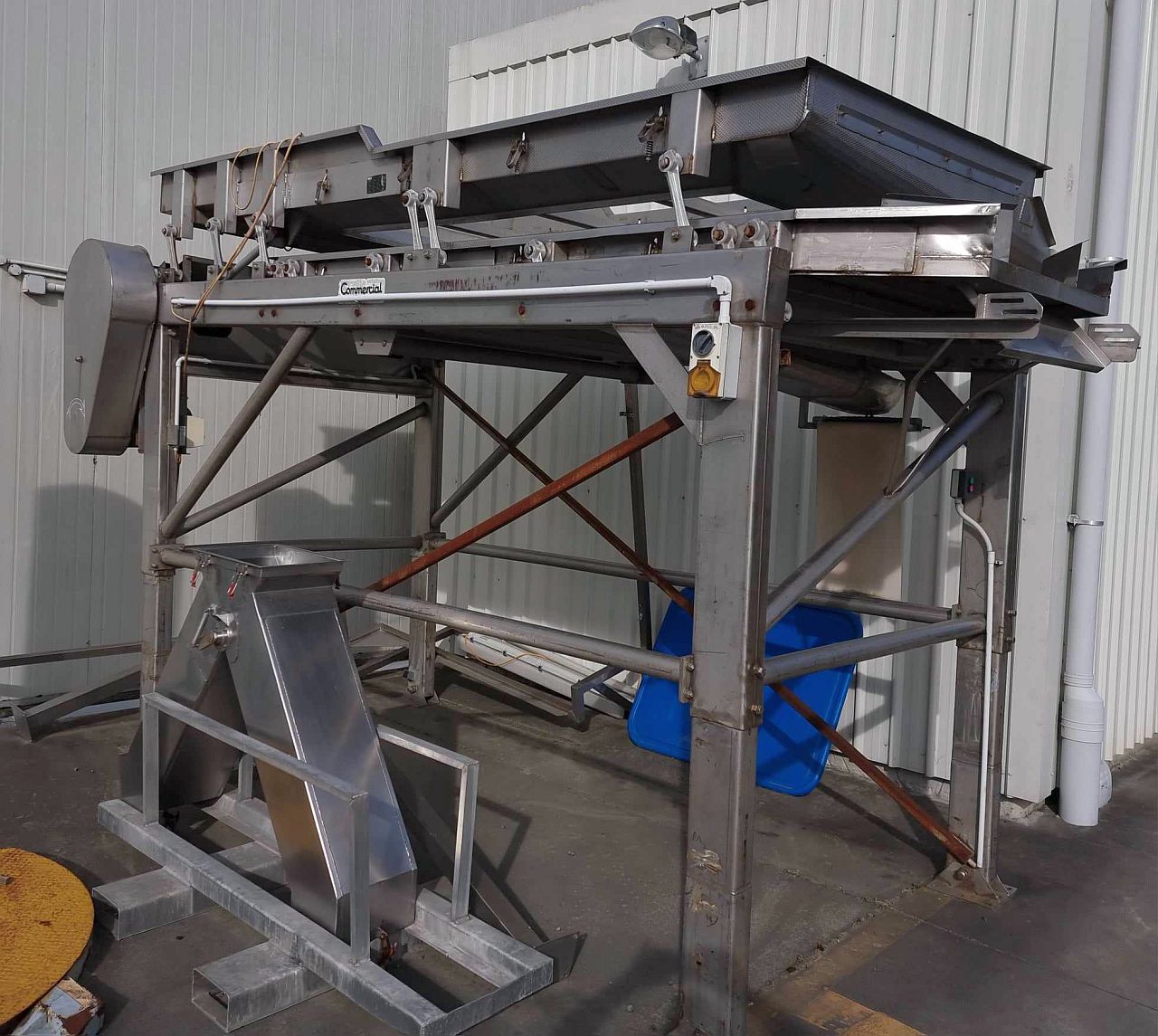

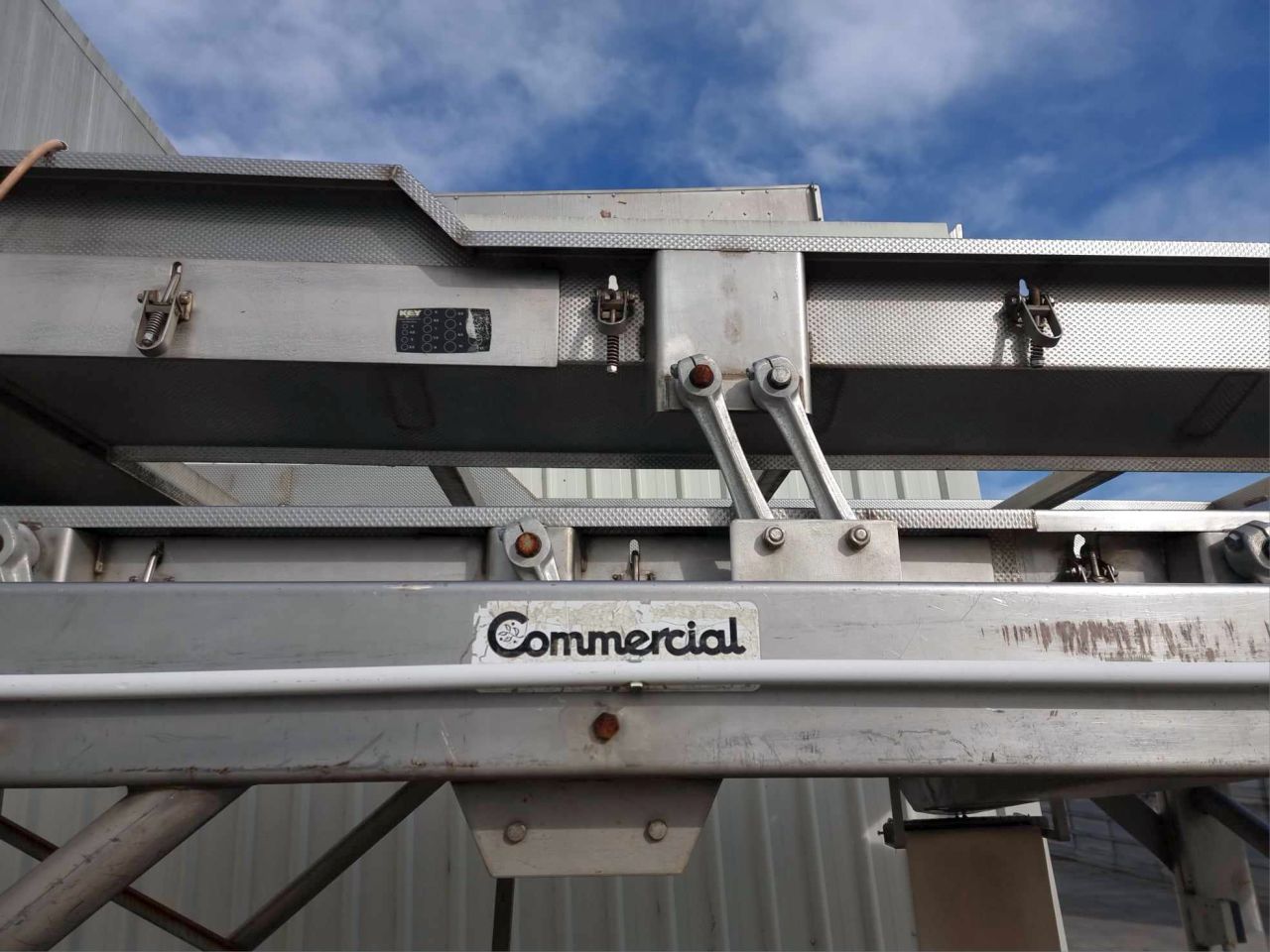

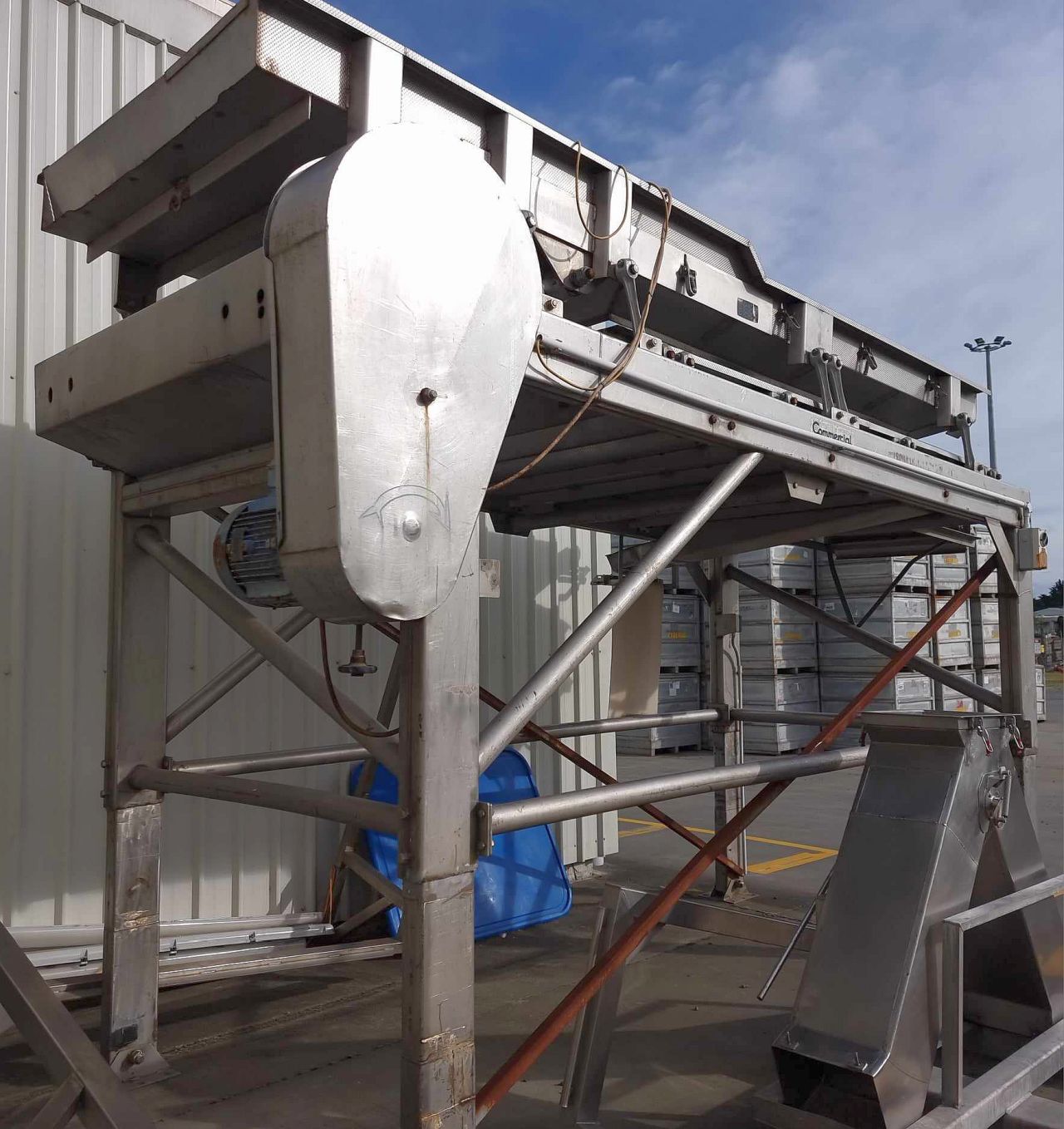

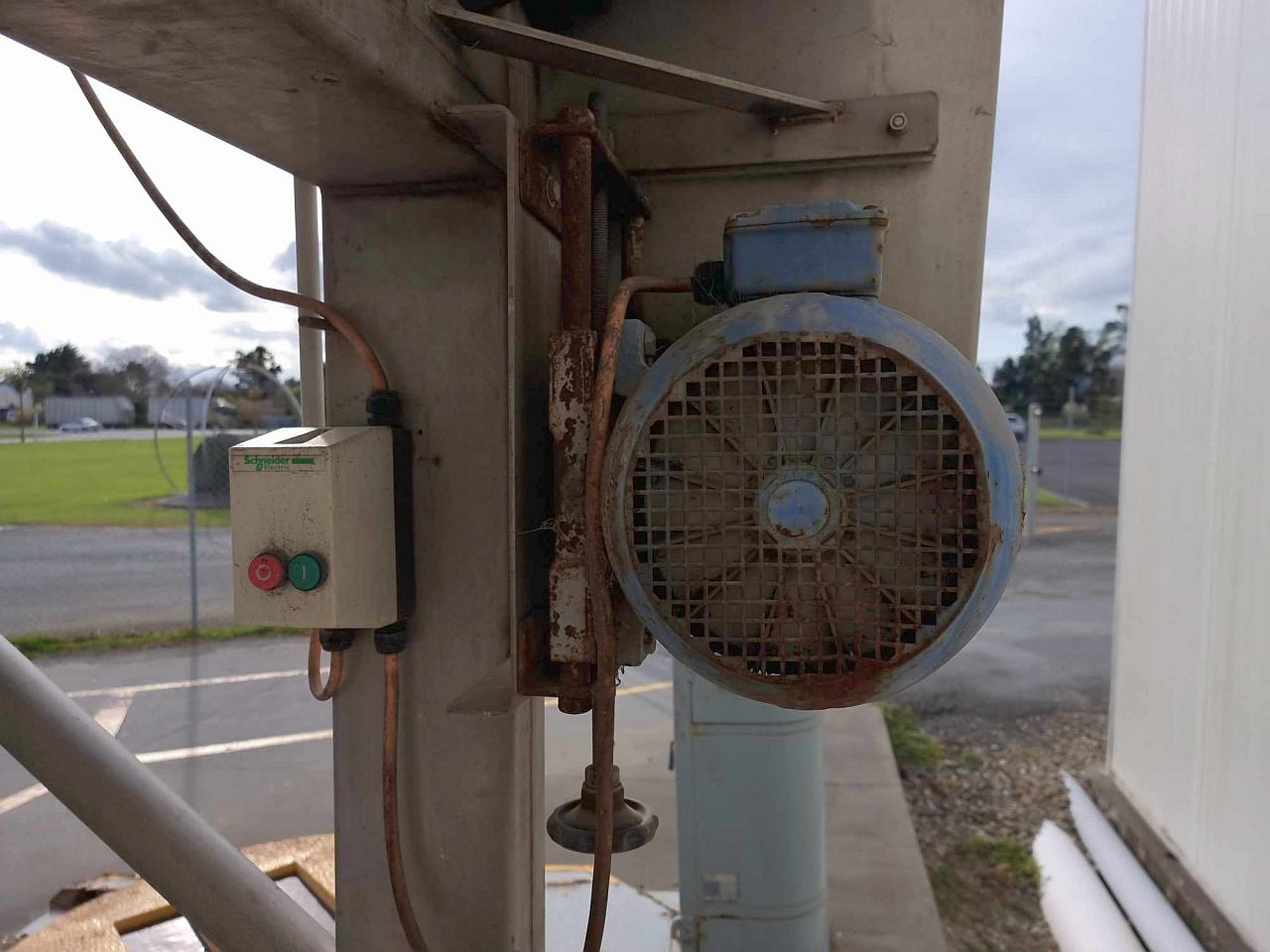

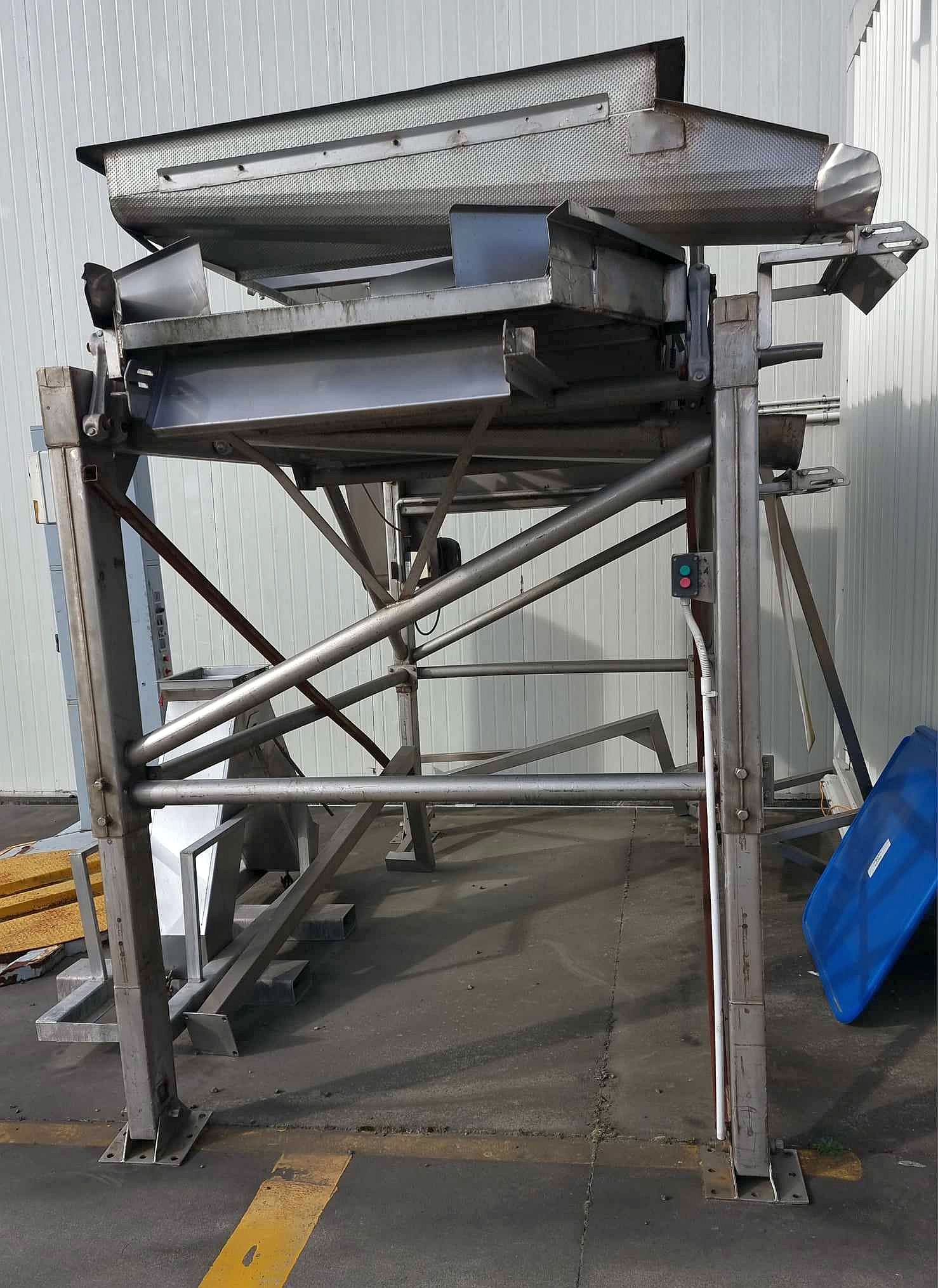

This used / secondhand Key vibratory screen / feeder is stainless steel construction and contact parts and was previously used for screening peas. The unit has tray 1350mm wide x 3850mm long. It has two (2x) outlets situated on the left hand side plus an end outlet. Any product that does not pass through the top screen exits a side chute 500mm wide and is positioned 2350mm above the ground. Product that passes through the top screen falls on a second level and these is sorted with product exiting via a 500mm wide side chute on the side located 1850mm above the ground. Both these side discharges have magnets mounted above the exit chutes. There are outlet chutes at the front of each size grading for overtails with the discharge being 2m above the ground as pictured. It is mounted on stainless steel framing and has level/height adjustable legs (appears it could be lowered a further 840mm). The unit requires 3 phase power supply.
