WEIGHER FILLERS (093fi)

ENQUIRE NOW SIMILAR ITEMS

Price (excl GST): POA

Model No: Single Lane

Length: 825

Width: 1380

Height: 2160

Motor: 1ph

Condition: New

Location: New Zealand

Output: 8 - 10/min

Capacity: 0.25kg - 5kg

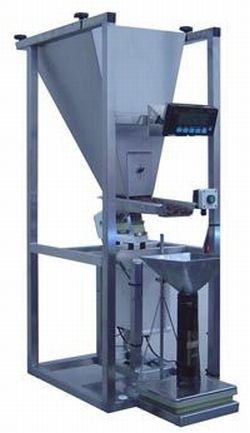

These single lane linear weighing systems include vibratory feeder, weigh scale and batch controller. These vibratory bag filler weighers are designed to batch weigh most granular products and powders with consistent performance. It utilises a load cell platform and controller specifically designed for simple and accurate economical batching.

It has the capacity of 0.25 kg, 0.5kg, 1.5kg, and 5kg (optional 10 to 1000kg) batch sizes. An accuracy of +/- 0.2 to 0.5% depending on speed required.
Speeds up to 8-10 per minute depending on the weight of the product and the accuracy required.

The control enclosure is protection to IP65 standards.

Optional extras include:
Bag holder,
Hopper window,
Large plastic feed hopper,
Dust collection system.

Also available and shown in the second image is a further vibratory bag filler or batch weigher which is designed to weigh most powders or products with consistent performance. It uses a load cell and controller specifically designed for the accurate and economical batching of most products.

The different vibratory feeder options are:
- electromagnetic,
- electromechanical,
- pneumatic, and
- high stroke feeder for difficult powders.

These units are priced on application.

Also available and shown in the second image is a further vibratory bag filler or batch weigher which is designed to weigh most powders or products with consistent performance. It uses a load cell and controller specifically designed for the accurate and economical batching of most products.
